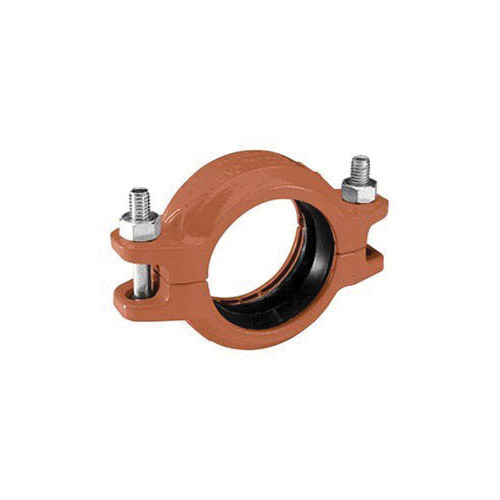

Gruvlok® Rigidlite® 0390211043 FIG 7400 Coupling, 1-1/2 in, Grooved, Ductile Iron

The FIG 7400 Rigidlite® coupling from Gruvlok® is specially designed to provide a rigid, locked-in pipe connection to meet the specific demands of rigid design steel pipe systems. Fast and easy swing-over installation of the rugged lightweight housing produces a secure, rigid pipe joint. The FIG 7400 Rigidlite® coupling is UL/ULC Listed and FM Approved for 300 psi (20.7 bars) with roll grooved or cut grooved steel pipe prepared in accordance with Gruvlok® grooving specifications. The galvanized FIG 7400 is ideal for stainless steel piping application where the external corrosion properties of stainless steel is not required.

Gruvlok® Coupling, Series: FIG 7400, Fitting/Connector Type: Coupling, 1-1/2 in Nominal, Grooved, 4-7/8 in Length, 300 psi, Ductile Iron, Rust Inhibiting Painted, Orange, -40 to 230 deg F, 1.9 in OD x 1.75 in D, Domestic

• Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
• Water, dilute acids, alkalies, salts, and many chemical services not involving hydrocarbons, oils, or gases
• Excellent oxidation resistance
• Not for use with hydrocarbons

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gruvlok_0390212785_Specification_Sheet.pdf
