Jomar Valve® 100-105 123060
  1. pin-int

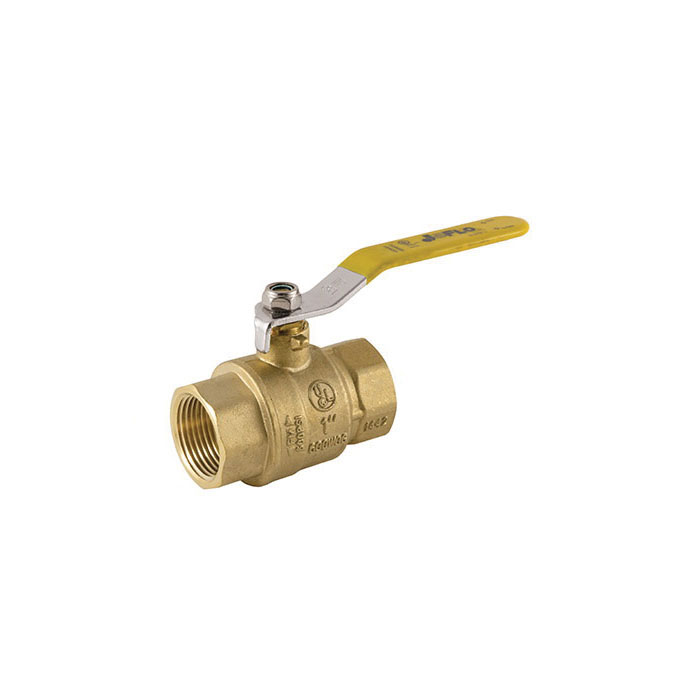

Jomar Valve 100-105 2-Piece Ball Valve With Handle, 1 in, NPT End Style, Brass

Jomar Valve 100-105 2-Piece Ball Valve With Handle, 1 in, NPT End Style, Brass

  • Manufacturer: Jomar Valve
  • Brand Name: Jomar Valve®
  • Part#: 123060
  • MPN: 100-105
  • UPC: 662527290052
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Jomar Valve® Ball Valve, 2-Piece, 1 in Nominal, NPT, 600 psi WOG, Full Port, Chrome Plated Brass Ball, 2.97 in Inlet to Outlet Length, 2.52 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, Buna-N/PTFE Softgoods

Ball Material      :      Chrome Plated Brass
Body Material      :      Brass
End Style      :      NPT
Inlet to Outlet Length      :      2.97 in
Nominal Size      :      1 in
Port Type      :      Full
Pressure Rating      :      600 psi WOG
Softgoods Material      :      Buna-N/PTFE
Top to Inlet Center      :      2.52 in
Trim Material      :      Brass Stem and PTFE Seat
Type      :      2-Piece
  • Gland follower and single O-Ring stem design
  • Blow-out proof stem
  • 100% leak tested
  • 150 psi steam working pressure
  • Buna-N stem O-ring and PTFE packing
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Jomar_Valve_400001_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Jomar_Valve_100101_Specification_Sheet.pdf
  • videoVIDEO LINK https://www.youtube.com/embed/DasFcHyAF_A
