NIBCO® NJ7J00F 257704
  1. pin-int

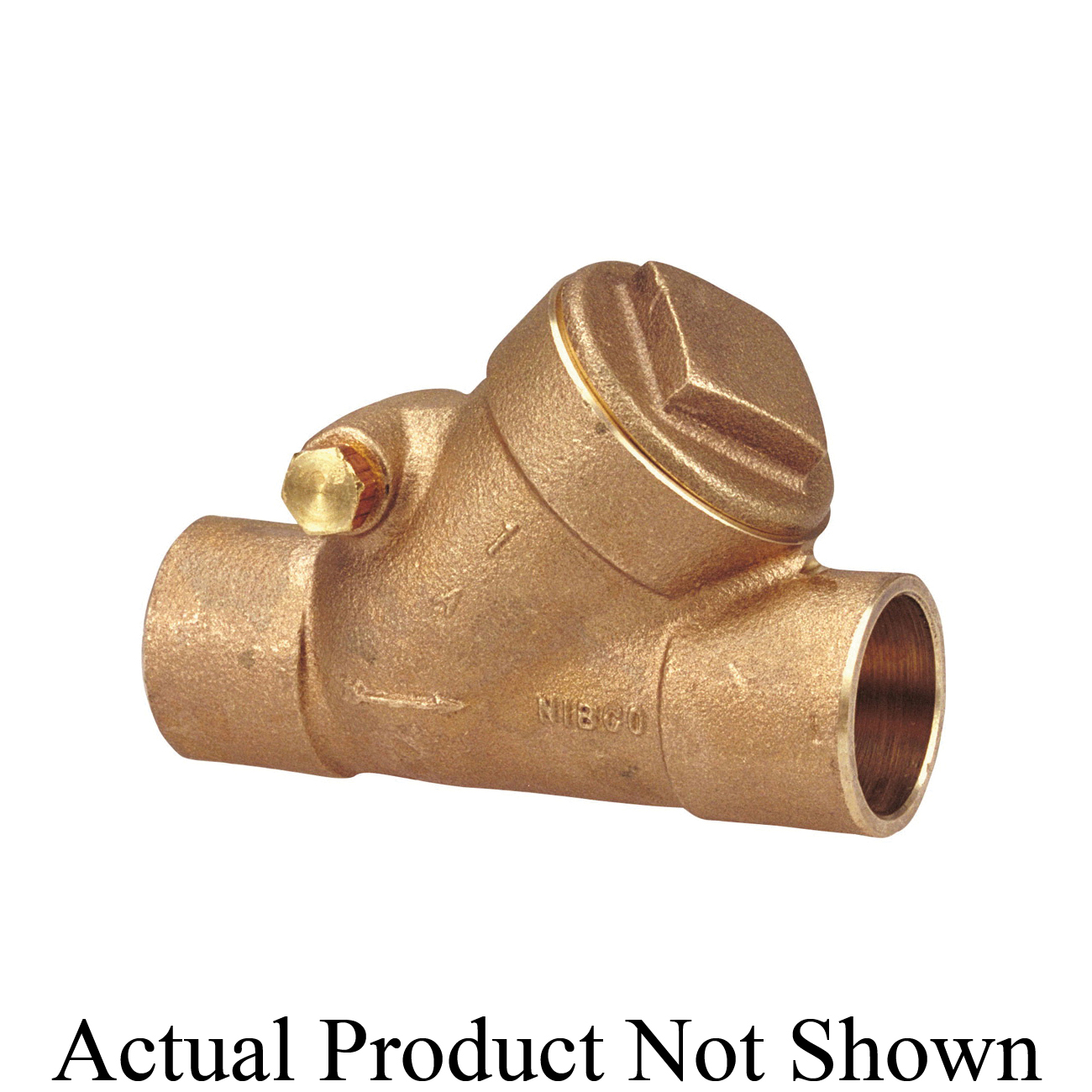

NIBCO® NJ7J00F S-433-B Y-Pattern Swing Check Valve, 3 in Nominal, Solder End Style, 150 lb, Bronze Body, Domestic

NIBCO® NJ7J00F S-433-B Y-Pattern Swing Check Valve, 3 in Nominal, Solder End Style, 150 lb, Bronze Body, Domestic

  • Manufacturer: NIBCO Inc.
  • Brand Name: NIBCO®
  • Part#: 257704
  • MPN: NJ7J00F
  • UPC: 039923635457
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

The NIBCO® bronze check valve features solder end connections for ease of installation. Swing check valves may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® check valves are backed by the NIBCO® 5 years 125% limited warranty.

NIBCO® Swing Check Valve, Y-Pattern, Series: S-433-B, 3 in Nominal, Solder, 300 psi, 150 lb, Low Lead Compliance: No, Bronze Body, Bronze Trim, Domestic

Body Material      :      Bronze
Domestic/Import      :      Domestic
End Style      :      Solder
Low Lead Compliance      :      No
Nominal Size      :      3 in
Pressure Class      :      150 lb
Pressure Rating      :      300 psi
Series      :      S-433-B
Trim Material      :      Bronze
Type      :      Y-Pattern
  • 150 psi/10.3 bar saturated steam to 366 deg F/185 deg C
  • 300 psi/20.7 bar non-shock cold working pressure
  • Renewable bronze discs
  • Regrindable seat
