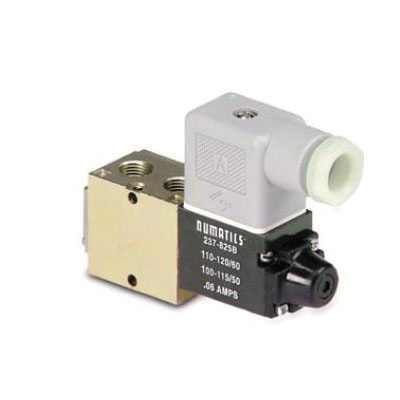

Numatics® L01SA4592000030 L01 Single Direct Solenoid Valve With Flush Non-Locking Override, 1/4 in Port, 28 in Hg to 150 psig Pressure, 9.3 scfm at 80 psig Flow Rate, 4 Ways, 26 mm Positions
- Manufacturer: Emerson Electric
- Brand Name: Numatics®
- Part#: 223662
- MPN: L01SA4592000030
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
The LO1 Series offers high flow in a compact, direct acting solenoid valve. Each LO1 features a 4-way, 4 ported design which can be mounted either inline or on a manifold in any position. The LO1 also offers an optional side mounted speed control.
Numatics® Solenoid Valve, Single Direct, Series: L01, 1/4 in, 28 in Hg to 150 psig, -10 to 115 deg F, 9.3 scfm at 80 psig, 4 Ways, 26 mm Positions, NPTF Port, Spring Return Actuator, 1.19 in H x 4.6 in W
| Actuator Type | : | Spring Return |
| Dimensions | : | 1.19 in H x 4.6 in W |
| Flow Rate | : | 9.3 scfm at 80 psig |
| Number of Positions | : | 26 mm |
| Number of Ways | : | 4 |
| Port Size | : | 1/4 in |
| Port Type | : | NPTF |
| Pressure Rating | : | 28 in Hg to 150 psig |
| Series | : | L01 |
| Temperature Rating | : | -10 to 115 deg F |
| Type | : | Single Direct |
- Repeatable and reliable performance in harsh environments
- Industry leading life performance
- Ideal for high cycle rate machine applications
- Optimize machine cycle rate via speed controls
