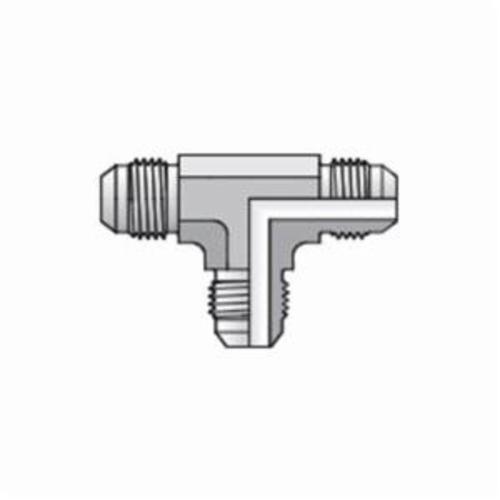

Parker® 10 JTX-SS JTX Triple-Lok® Tube Union Tee, 5/8 in Nominal, Male JIC 37 deg Flare End Style, Stainless Steel

Parker's 37 deg flare JIC tube fittings and adapters, Triple-Lok®, meet the requirements of both SAE J514 and ISO 8434-2 and offer the industry's broadest offering of port ends. The design has a small metal to metal seal area which results in a compact design, low assembly torque, high temperature and high pressure capability.

Parker® Tube Union Tee, Series: JTX Triple-Lok®, Fitting/Connector Type: Tee, 5/8 in Nominal, Male JIC 37 deg Flare, 1.45 in Length, 5000 psi, Stainless Steel

• Easily adaptable to inch tube, metric tube and hose giving it worldwide acceptance
• Vast selection of port end options, including SAE straight thread O-ring boss (ORB), NPTF, BSPP-ED, BSPP O-ring retaining ring (ORR), BSPP, BSPT, ISO 6149, metric O-ring retaining ring (ORR) and metric-ED
• Parker's robust port stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly mistake-proof
• Steel fittings substantially exceeded the SAE corrosion requirements of 72 hrs without red rust, lasting up to 1000 as found by an independent test facility
• Stainless steel nuts have a coating to prevent galling
• 7/8-14 UN/UNF-2A tube end
