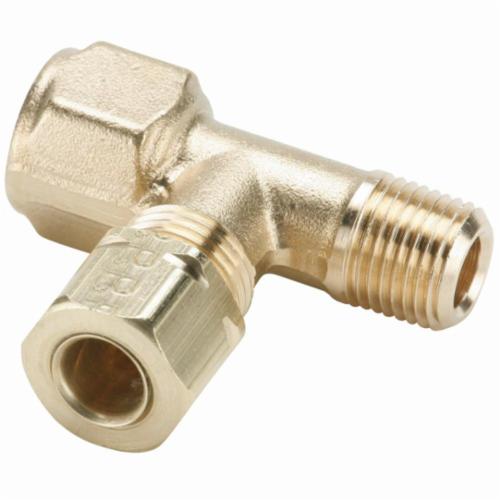

Parker® 176CA-4-2 Compress-Align® 176CA Compression Adapter Tee, 1/4 x 1/8 x 1/8 in, Tube x Male NPTF x Female NPTF, Forged Brass
- Manufacturer: Parker Hannifin
- Brand Name: Parker®
- Part#: 261002
- MPN: 176CA-4-2
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
Parker's economical Compress-Align fittings are pre-assembled with a captive sleeve which is always oriented correctly for faster assembly. The captive sleeve gives a visible inspection before and after installation and the design of the sleeve aligns to seal even out-of-round tubing. Compress-Align can be used in many areas where flare fittings are used due to the higher pressure rating, meaning no flaring, soldering or tube preparation resulting in faster installation. Compress-Align bodies are interchangeable with standard compression bodies so inventory is decreased.
Parker® Compression Adapter Tee, Series: Compress-Align® 176CA, Tee, 1/4 x 1/8 x 1/8 in Nominal, Tube x Male NPTF x Female NPTF, 0.92 in Length, 2800 psi, -65 to 250 deg F, Forged Brass
| End Style | : | Tube x Male NPTF x Female NPTF |
| Fitting/Connector Type | : | Tee |
| Length | : | 0.92 in |
| Material | : | Forged Brass |
| Nominal Size | : | 1/4 x 1/8 x 1/8 in |
| Pressure Rating | : | 2800 psi |
| Series | : | Compress-Align® 176CA |
| Temperature Rating | : | -65 to 250 deg F |
- Economical
- Higher working pressures versus standard compression fitting
- Bodies interchangeable with standard compression bodies
- One wrench turn from finger tight for assembly for all sizes
- Compatible with copper, aluminum, polyethylene, nylon, polypropylene, PTFE, FEP, PFA and thermoplastic tubing
- Designed for water, air, inert and non-combustible gasses media
- 7/16-24 straight thread
- 0.188 in flow diameter
