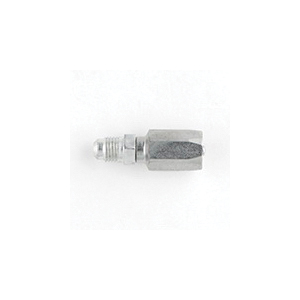

Parker® 20420-6-6 20 Series Field Attachable Hydraulic Hose Fitting, 3/8 in x 5/8-18 Nominal, 45 deg Male SAE Rigid End Style, Steel, Domestic
- Manufacturer: Parker Hannifin
- Brand Name: Parker®
- Part#: 262370
- MPN: 20420-6-6
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
Parker® 20 series fittings are a 2-piece field attachable style fitting which enables you to quickly and easily make hose assemblies right on the job site without special tools. The fitting series when coupled with Parker® no-skive hose provides convenience and shorter assembly time. The 20 series fittings are compatible with transportation, liquefied petroleum gas and marine fuel and brake engine hoses. The 20 series fittings are available from 3/16 to 2-3/8 in a wide variety of end configurations.
Parker® Hydraulic Hose Fitting, Field Attachable, Series: 20 Series, Adapter Fitting/Connector, 3/8 in x 5/8-18 Nominal, 45 deg Male SAE Rigid End Style, 11/16 x 13/16 in Hex, Steel, 2.17 in L Dimensions, Domestic
| Dimensions | : | 2.17 in L |
| Domestic/Import | : | Domestic |
| End Style | : | 45 deg Male SAE Rigid |
| Fitting/Connector Type | : | Adapter |
| Hex Size | : | 11/16 x 13/16 in |
| Material | : | Steel |
| Nominal Size | : | 3/8 in x 5/8-18 |
| Series | : | 20 Series |
| Type | : | Field Attachable |
- Can be assembled in field with wrenches
- Imperial HEX
- Wide range of end configurations
- No skive technology offers easy, efficient and safe production processes
