Scotch® 7000005814 433542
  1. pin-int

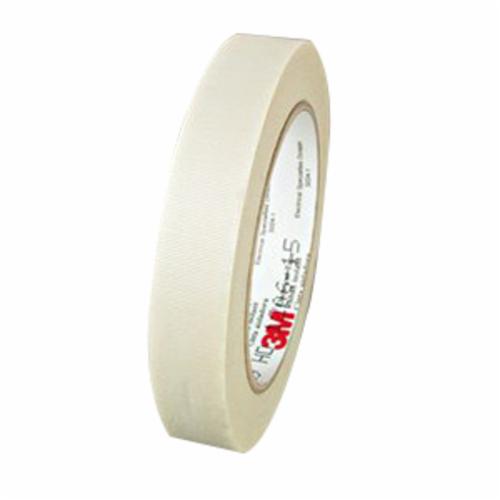

Scotch® 7000005814 Cloth Tape, 66 ft L x 1/2 in W, 7 mil THK, Glass Cloth, Thermosetable Rubber Adhesive, White

Scotch® 7000005814 Cloth Tape, 66 ft L x 1/2 in W, 7 mil THK, Glass Cloth, Thermosetable Rubber Adhesive, White

  • Manufacturer: 3M
  • Brand Name: Scotch®
  • Part#: 433542
  • MPN: 7000005814
  • UPC: 054007150664
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

3M™ glass cloth electrical tape 27 is a 7 mil woven insulating tape with pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 V dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.

Scotch®, 7000005814, Cloth Tape, 66 ft Length, 1/2 in Width, 7 mil Thickness, Glass Cloth, White, 3 in Diameter Core, Thermosetable Rubber Adhesive, 30 in-oz Adhesion Strength, 600 VAC, 3000 V/mil Dielectric Strength, 150 in-lb Tensile Strength, 302 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: UL Listed, CSA Certified

Adhesion Strength      :      30 in-oz
Adhesive Material      :      Thermosetable Rubber
Backing Material      :      Glass Cloth
Color      :      White
Core Diameter      :      3 in
Dielectric Strength      :      3000 V/mil
Length      :      66 ft
Material Type      :      Glass Cloth
Maximum Operating Temperature      :      302 deg F
Minimum Operating Temperature      :      32 deg F
Specifications Met      :      UL Listed, CSA Certified
Tensile Strength      :      150 in-lb
Thickness      :      7 mil
Type      :      Premium-Grade Special Use
Voltage Rating      :      600 VAC
Width      :      1/2 in
  • Insulating electric and induction type furnace power supply leads
  • Insulating motor lead connectors, switchers and controls for furnaces and ovens
  • Insulation in coil wrapping outer wrap
  • Securing systems requiring high mechanical strength and resistance to high temperatures
  • Splicing wire SF and SFF rated 302 deg F (150 deg C), 356 deg F (180 deg C)
  • PROVIDES A STRONG BOND - At extreme temperatures ranging from low temperature to 302F (up to 150C)
  • GLASS CLOTH BACKING - Optimally insulates with no shrinking or burning
  • RELIABLE AND RESISTANT - Resists rotting and shrinking after extended use in a variety of environments
  • PRESSURE SENSITIVE ADHESIVE - Non - corrosive, solvent resistant, thermosetting rubber adhesive
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_934304982a828372977c603aad10c81470c5b77d90e28a1782e41b780e26ca19.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a2f906413cd57c57ef3cb2281f2d0e5ea3f83bdcf4ebf485b3da8caa97119d33.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b28ebd8ae47ad441c8c39f915ba52fdf15cec186096759f2e58fe2df3d9ee39b.pdf
  • pdfSDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_054007_10570_SDS.pdf
  • linkVIDEO LINK https://players.brightcove.net/2635130879001/87204183-1ed0-4d7b-a78e-d5eab05f2605_default/index.html?autoplay=1&videoId=3832730509001
