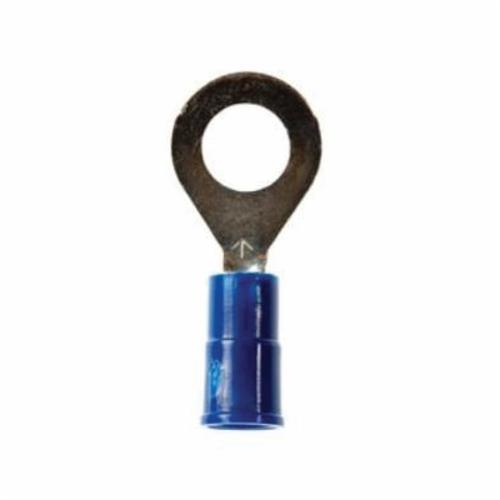

Scotchlok™ 7000133335 Insulated Terminal, 16 to 14 AWG Conductor, 0.93 in L, Brazed Seam Barrel, Vinyl, Blue
- Manufacturer: 3M
- Brand Name: Scotchlok™
- Part#: 437340
- MPN: 7000133335
- UPC: 051128587553
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Sold As: EACH
-
Price:
- Add To Favorites
The flared, vinyl sleeve insulation of the 3M™ Scotchlok™ standard large ring tongue terminal ensures easy crimping. Along with a brazed seam barrel, this ring tongue has a funnel designed, polyvinyl chloride cover sleeve that helps guide the wire into position while providing reliable electrical contacts and mechanical stress relief at the insulation point.
Scotchlok™, 7000133335, Terminal, Insulated, 16 to 14 AWG Conductor, #8 Stud, 0.93 in Length, Brazed Seam Barrel, 0.09 in ID x 0.25 in L Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600/1000 VAC, Specifications: 0.17 in Dia Max Insulation, 0.33 in Clearance, -40 to 221 deg F, Vinyl, Tin Plated, Blue
| Barrel Size | : | 0.09 in ID x 0.25 in L |
| Barrel Type | : | Brazed Seam |
| Color | : | Blue |
| Conductor Size | : | 16 to 14 AWG |
| Finish | : | Tin Plated |
| Length | : | 0.93 in |
| Material | : | Vinyl |
| Specifications | : | 0.17 in Dia Max Insulation, 0.33 in Clearance |
| Stud Size | : | #8 |
| Temperature Rating | : | -40 to 221 deg F |
| Tongue Size | : | 0.31 in W x 0.03 in THK |
| Tongue Type | : | Ring |
| Type | : | Insulated Standard |
| Voltage Rating | : | 600/1000 VAC |
- Made of electrolytic copper for good conductivity and has tin plating for corrosion-resistance
- Crimp termination
- Free hanging (in-line) mounting
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Standard-style ring tongue fits around the stud
- Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)
