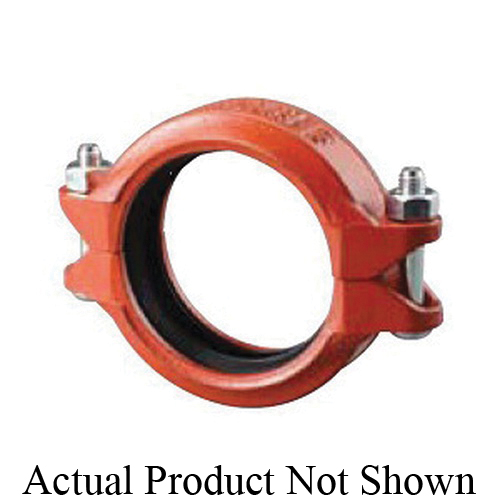

SHURJOINT® SJ77053PE Model 7705 Standard Flexible Coupling, 3 in Nominal, Grooved End Style, Ductile Iron, Painted, Import

The Model 7705 Standard Flexible Coupling is a standard flexible coupling for use in a variety of general piping applications of moderate pressure services. The Model 7705 couplings features flexibility that can deal with misalignment, distortion, thermal stress, vibration and noise and also resist seismic tremors. With the use of Model 7705 couplings you can even design a curved layout. All Model 7705 couplings are comprised of two identical ductile iron housings segments, EPDM rubber gasket and plated track bolts & nuts. Housings segments are supplied with our standard painted finishes, i.e. orange or RAL3000 red. Optional finishes such as hot dipped zinc galvanized and custom epoxy coatings are available.

SHURJOINT® Coupling, Standard Flexible, Series: Model 7705, Fitting/Connector Type: Coupling, 3 in Nominal, Grooved, 2.05 in Thickness, 6.46 in Length, Ductile Iron, Painted, Orange/Red, -30 to 230 deg F, 4.57 in H, Import

• 3.5 in pipe OD

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Shurjoint_SJT7705125PE_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Shurjoint_SJT7705125PE_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Shurjoint_SJT7705125PE_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Shurjoint_SJT7705125PE_Specification_Sheet.pdf
