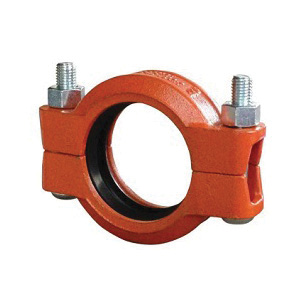

SHURJOINT® SJXH10003PT Extra Heavy Rigid Coupling, 3 in, Ductile Iron

The SHURJOINT® Model XH-1000 is an extra heavy rigid coupling designed for high pressure services up to 1000 psi (70 Bar), supplied with a standard C-shaped gasket and heavy duty bolts and nuts. The coupling is painted in orange color. The Model XH-1000 can be installed on standard roll or standard cut-grooved pipes. For sizes 2 to 4 in, there will be a gap between the bolts pads after installed and bolts and nuts shall be always tightened with a torque 60 to 70 lb-ft (80 to 95 nm). For sizes 6 in and above, the bolt pads make a metal-to-metal contact when properly installed and there is no torque wrench requirement. The Model XH-1000 can be also used for stainless steel pipe.

SHURJOINT® Rigid Coupling, Extra Heavy, Series: Model XH-1000, Fitting/Connector Type: Coupling, 3 in Nominal, 1.92 in Thickness, 7.4 in Length, 1000 psi, Ductile Iron, Painted, Orange, -20 to 180 deg F, Import

• 3-1/2 in pipe OD

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Shurjoint_SJT7705125PE_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Shurjoint_SJXH100012PT_Specification_Sheet.pdf
