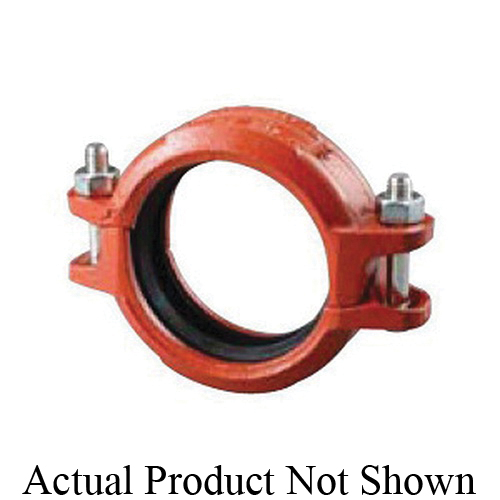

SHURJOINT® SJZ073PT Model Z07 Heavy Duty Rigid Coupling, 3 in, Grooved, Ductile Iron

The SHURJOINT® Model Z07 is an angle-pad design rigid coupling for general piping applications where rigidity is required including valve connections, mechanical rooms, fire mains and long straight runs. The angle-pad design allows the coupling housings to slide along the bolt pads when tightened. The result is an offset clamping action which provides a rigid joint that resists flexural and torsional loads. Support and hanging requirements correspond to ANSI B31.1, B31.9 and NFPA 13. The SHURJOINT® Model Z07 is available with a standard "C" shaped or GapSeal gasket in a variety grades to meet your specific service requirements.

SHURJOINT® Rigid Coupling, Heavy Duty, Series: Model Z07, Fitting/Connector Type: Coupling, 3 in Nominal, Grooved, 1.88 in Thickness, 6.54 in Length, Ductile Iron, Painted, Orange/Red, -20 to 180 deg F, 4.53 in H, Import

• 3.5 in pipe OD
• Angle pad design rigid coupling

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Shurjoint_SJT7705125PE_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Shurjoint_SJZ0710GE_Specification_Sheet.pdf
