Spears® 1521-002 48299
  1. pin-int

Spears® 1521-002 Lab Ball Valve, 1/4 in Nominal, FNPT End Style, PVC Body, EPDM Softgoods, Domestic

Spears® 1521-002 Lab Ball Valve, 1/4 in Nominal, FNPT End Style, PVC Body, EPDM Softgoods, Domestic

  • Manufacturer: Spears Manufacturing
  • Brand Name: Spears®
  • Part#: 48299
  • MPN: 1521-002
  • UPC: 054211540008
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

This versatile quarter-turn shut-off valve is ideally suited for a variety of laboratory, system monitoring and OEM applications. Available in IPS sizes 1/4 in - 3/8 in with socket or threaded end connectors, plus 1/4 in threaded Valve and Adapter Kit to provide multiple connection options.

Spears® Lab Ball Valve, 1/4 in Nominal, FNPT, 150 psi, 140 deg F, T-Handle Actuator, PVC Ball, 2-1/8 in Inlet to Outlet Length, 1-1/16 in Top to Inlet Center, PVC Body, PVC Stem and PTFE Seat Trim, EPDM, Gray, Domestic

Actuator Type      :      T-Handle
Ball Material      :      PVC
Body Material      :      PVC
Color      :      Gray
Domestic/Import      :      Domestic
End Style      :      FNPT

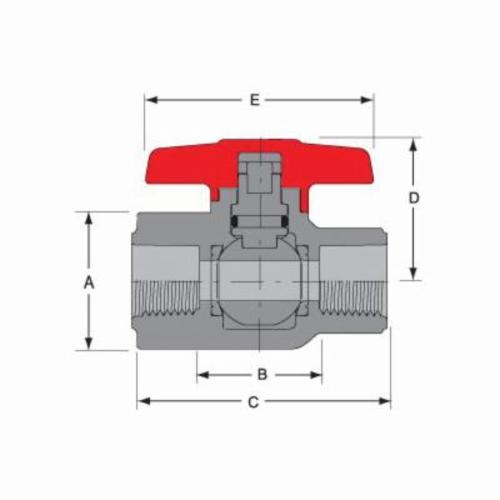

Inlet to Outlet Length      :      2-1/8 in
Nominal Size      :      1/4 in
Pressure Rating      :      150 psi
Softgoods Material      :      EPDM
Temperature Rating      :      140 deg F
Top to Inlet Center      :      1-1/16 in
Trim Material      :      PVC Stem and PTFE Seat
  • Chemical and corrosion resistant PVC or CPVC construction
  • High impact polypropylene handle
  • Assembled with silicone-free, water soluble lubricant
  • Maintenance-free sealed unit
  • Individual valve or multi-functional valve and adapter kit
  • SCH 80/XH full bore design
  • EPDM O-ring
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Spears_1521_002_Specification_Sheet.pdf
  • linkVIDEO LINK http://youtu.be/9hzQlUWbLSE
