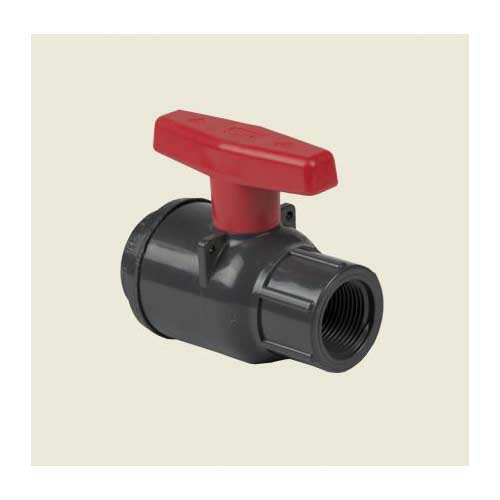

Spears® 2131-010 Compact Regular Style Ball Valve With Handle, 1 in, FNPT, PVC Body, FKM Softgoods, Domestic

All thermoplastic ball valves shall be Compact sealed unit type constructed from PVC Type I, ASTM D 1784 Cell Classification 12454 or CPVC Type IV, Cell Classification 23447. All O-rings shall be EPDM or FKM. All valves shall have Safe-T-Shear® stem and Polypropylene handle. All EPDM valves shall be certified by NSF International for use in potable water service. All 1/2 in to 2 in valves shall be pressure rated at 235 psi, all 3 in to 6 in and all flanged valves shall be pressure rated at 150 psi for water at 73 deg F, as manufactured by Spears® Manufacturing Company.

Spears® Ball Valve, Regular Style, Series: Compact, 1 in Nominal, FNPT, 235 psi, 140 deg F, Media: Water, 2-7/16 in Inlet to Outlet Length, 4-5/16 in Top to Inlet Center, PVC Body, PVC Stem Trim, FKM Softgoods, Gray, Domestic

• Chemical and corrosion resistant PVC construction
• High impact polypropylene handle
• SCH 80/XH full-bore design
• Spears® single O-Ring Safe-T-Shear® stem design
• Self adjusting PTFE floating seat design
• Suitable for vacuum service
• Assembled with silicone-free, water soluble lubricant
• Maintenance-free sealed unit
• Not for distribution of compressed air or gas
• FKM O-ring

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Spears_2131_010_Specification_Sheet.pdf
• VIDEO LINK https://youtu.be/9hzQlUWbLSE
