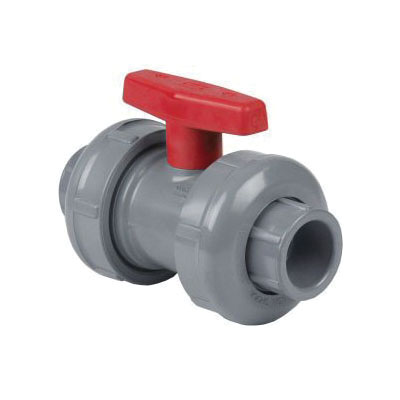

Spears® 2339-020C True Union Regular Style Ball Valve, 2 in Nominal, Socket and FNPT End Style, CPVC Body, FKM Softgoods, Domestic
- Manufacturer: Spears Manufacturing
- Brand Name: Spears®
- Part#: 2516
- MPN: 2339-020C
- UPC: 054211508756
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Sold As: EACH
-
Price:
- Add To Favorites
This versatile, quarter-turn shut-off valve is well suited for industrial and chemical processing applications. Available in IPS Sizes 1/2 to 4 in with socket, threaded or flanged end connectors. 6 in Ventured valve (4 in valve with 4 x 6 adapter) available with either socket or flanged end connection. Also available with metric 20mm - 110mm or 1/2 to 4 in BSP threaded end connectors.
Spears® Ball Valve, Regular Style, Series: True Union, 2 in Nominal, Socket and FNPT, 235 psi, 200 deg F, T-Handle Actuator, CPVC Ball, 8-13/16 in Inlet to Outlet Length, 4-13/32 in Top to Inlet Center, CPVC Body, CPVC Stem and PTFE Seat Trim, FKM, Gray, Domestic
| Actuator Type | : | T-Handle |
| Ball Material | : | CPVC |
| Body Material | : | CPVC |
| Color | : | Gray |
| Domestic/Import | : | Domestic |
| End Style | : | Socket and FNPT |
| Inlet to Outlet Length | : | 8-13/16 in |
| Nominal Size | : | 2 in |
| Pressure Rating | : | 235 psi |
| Series | : | True Union |
| Softgoods Material | : | FKM |
| Temperature Rating | : | 200 deg F |
| Top to Inlet Center | : | 4-13/32 in |
| Trim Material | : | CPVC Stem and PTFE Seat |
| Type | : | Regular Style |
- Chemical and corrosion resistant PVC or CPVC construction
- SCH 80/XH full bore design
- Strong, buttress thread union nuts
- Fully Serviceable, replaceable Components
- Spears® Safe-T-Blocked® seal Carrier
- Self adjusting PTFE Floating seat Design
- High impact polypropylene handle
- Spears® Safe-T-Shear® stem design
- EPDM valves NSF® certified for potable water use
- Suitable for vacuum service
- Assembled with silicone-free, water soluble lubricant
- FKM O-ring
