Spears® 6622-007 212833
  1. pin-int

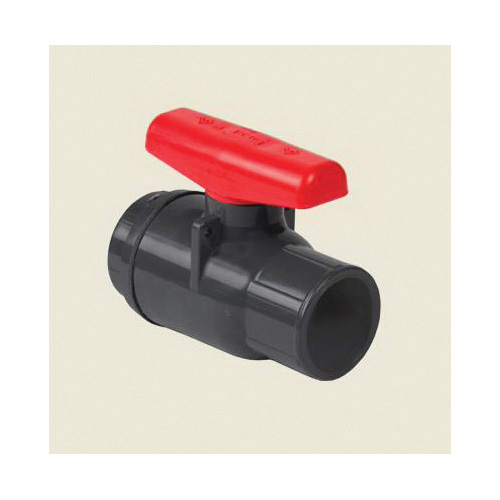

Spears® 6622-007 Compact 2000 Ball Valve With Handle, 3/4 in, Socket, PVC Body, EPDM/FKM Softgoods, Domestic

Spears® 6622-007 Compact 2000 Ball Valve With Handle, 3/4 in, Socket, PVC Body, EPDM/FKM Softgoods, Domestic

  • Manufacturer: Spears Manufacturing
  • Brand Name: Spears®
  • Part#: 212833
  • MPN: 6622-007
  • UPC: 054211370056
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Economical, low profile quarter-turn shut-off valve is excellent for general purpose and many OEM applications. PVC and CPVC valves are available in IPS sizes 1/2 in through 2 in with socket and regular thread.

Spears® Ball Valve, Series: Compact 2000, 3/4 in Nominal, Socket, 235 psi, PVC Ball, 3-1/2 in Inlet to Outlet Length, 2 in Top to Inlet Center, PVC Body, EPDM/FKM Softgoods, Gray, Domestic

Ball Material      :      PVC
Body Material      :      PVC
Color      :      Gray
Domestic/Import      :      Domestic
End Style      :      Socket
Inlet to Outlet Length      :      3-1/2 in
Nominal Size      :      3/4 in
Pressure Rating      :      235 psi
Series      :      Compact 2000
Softgoods Material      :      EPDM/FKM
Top to Inlet Center      :      2 in
  • Industrial grade, maintenance-free sealed unit
  • New actuator-ready body accepts Spears® improved mini-mount actuator mounting kits
  • New double O-Ring stem seal
  • Spears® Safe-T-Shear® stem
  • PTFE self adjusting floating seats
  • Suitable for vacuum service
  • Produced in ASTM IPS sizes 1/2 in - 2 in with socket or threaded end connectors
  • 235 psi at 73 deg F
  • EPDM O-ring and EPDM/FKM O-ring seal
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Spears_6622_007_Specification_Sheet.pdf
  • linkVIDEO LINK http://youtu.be/9hzQlUWbLSE
