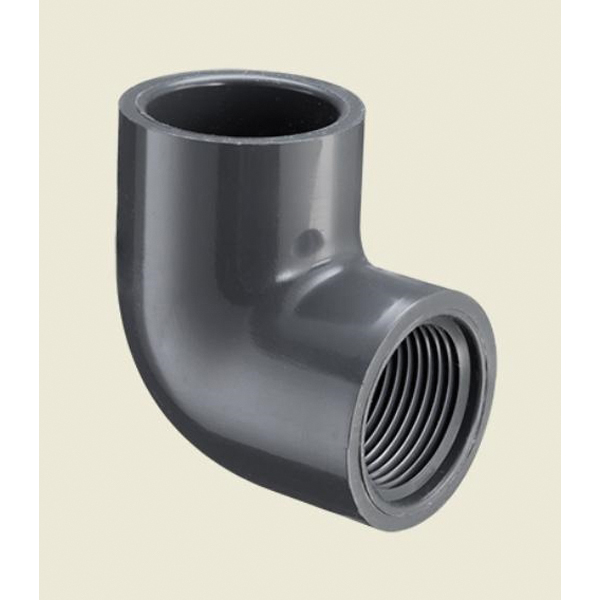

Spears® 807-015 90 deg Elbow, 1-1/2 in, Socket x FNPT, SCH 80/XH, PVC, Domestic

All PVC SCH 80/XH fittings shall be produced by Spears® manufacturing company from PVC type I, cell classification 12454, conforming to ASTM Standard D1784. All injection molded PVC SCH 80/XH fittings shall be certified for potable water service by NSF® international manufactured in strict compliance to ASTM D2467. All fabricated fittings shall be produced in accordance with Spears® general specifications for fabricated fittings. All PVC flanges shall be designed and manufactured to meet CL150 bolt pattern per ANSI Standard B16.5 and rated for a maximum internal pressure of 150 psi, non-shock at 73 deg F.

Spears® Elbow, Fitting/Connector Type: 90 deg Elbow, 1-1/2 in Nominal, Socket x FNPT, SCH 80/XH, 150 psi, Molded, PVC, Gray, Domestic

• Elevated temperature fluid mediums require a de-rating of thermoplastic pipe maximum internal pressure ratings at 73 deg F

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Spears_807_015_Specification_Sheet.pdf
• VIDEO LINK https://youtu.be/Auyhm7YKQEI
