Spears® 808-025 Standard, 2-1/2 in nominal, FNPT end style, SCH 80, PVC, Domestic

Spears® 808-025 Standard, 2-1/2 in nominal, FNPT end style, SCH 80, PVC, Domestic

  • Manufacturer: Spears Manufacturing
  • Brand Name: Spears®
  • Part#: 3210
  • MPN: 808-025
  • UPC: 054211163665
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

All PVC SCH 80/XH fittings shall be produced by Spears® manufacturing company from PVC type I, cell classification 12454, conforming to ASTM Standard D1784. All injection molded PVC SCH 80/XH fittings shall be certified for potable water service by NSF® international manufactured in strict compliance to ASTM D2467. All fabricated fittings shall be produced in accordance with Spears® general specifications for fabricated fittings. All PVC flanges shall be designed and manufactured to meet CL150 bolt pattern per ANSI Standard B16.5 and rated for a maximum internal pressure of 150 psi, non-shock at 73 deg F.

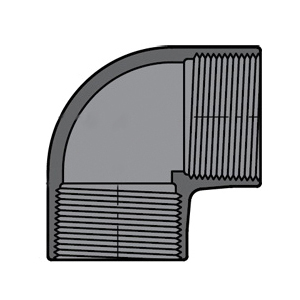

Spears® 808-025, Standard, 90 deg Elbow Fitting/Connector, 2-1/2 in Nominal, FNPT End Style, SCH 80 Schedule, 150 psi Pressure, Molded Method of Manufacture, PVC, Gray, 73 deg F, Domestic/Import: Domestic

Color      :      Gray
Domestic/Import      :      Domestic
End Style      :      FNPT
Fitting/Connector Type      :      90 deg Elbow
Material      :      PVC
Method of Manufacture      :      Molded
Nominal Size      :      2-1/2 in
Pressure Rating      :      150 psi
Schedule Rating      :      SCH 80/XH
Temperature Rating      :      73 deg F
Type      :      Standard
