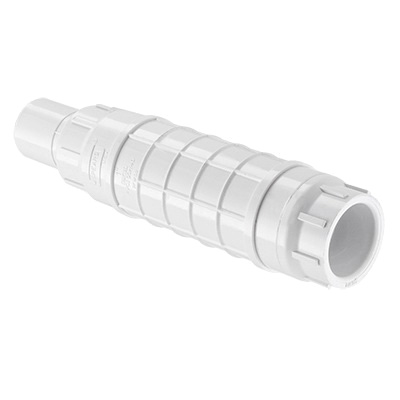

Spears® S118-20, 2 in nominal, Spigot x Socket end style, SCH 40, PVC, EPDM seal, Domestic

All thermoplastic repair couplings shall be constructed from white or gray Polyvinyl Chloride (PVC) Type I compound having a cell classification of 12454 conforming to ASTM D1784. All repair couplings shall be furnished with double O-ring seal in EPDM or FKM elastomer material. Socket X Spigot or Socket X Socket end connections shall be offered. Repair couplings in 1/2 to 3 in shall have an internal pressure rating of 235 psi at 73 deg F, 2-1/2 to 4 in, 200 psi at 73 deg F, 6 in 150 psi at 73 deg F as manufactured by Spears® Manufacturing Company and be certified for use in potable water applications by NSF® International.

Spears® S118-20, Coupling Fitting/Connector, 2 in Nominal, Spigot x Socket End Style, 9-15/16 in Length, SCH 40 Schedule, 235 psi Pressure, Molded Method of Manufacture, PVC, EPDM Seal, White, 73 deg F, 3-3/16 in Dia Dimensions, Domestic/Import: Domestic

• Multi-featured design, PVC white and industrial PVC gray, easy-threaded compression nut converts to spigot coupling
• Strong, buttress threaded compression nuts
• NSF® approved for potable water use
• Spigot conversion capability
• Can be used as short-stroke expansion joint

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Spears_S118_20_Specification_Sheet.pdf
