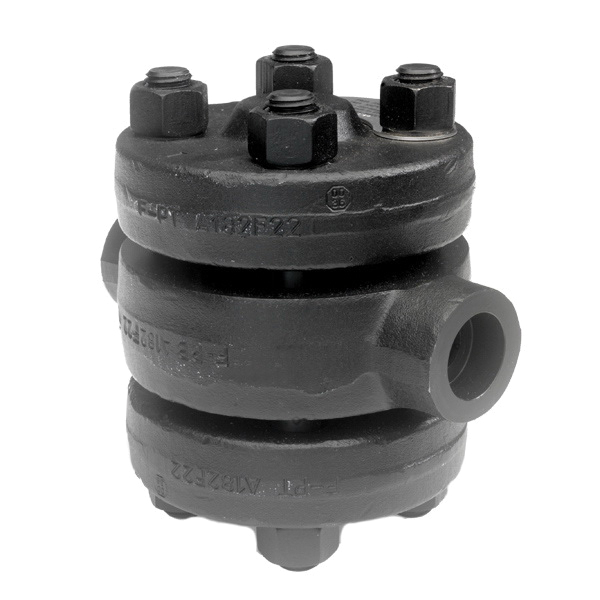

Spirax Sarco 1506295 TD120M Thermo-Dynamic Steam Trap
- Manufacturer: Spirax-Sarco Inc
- Brand Name: Spirax Sarco
- Part#: 231531
- MPN: 1506295
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
High pressure Thermo-Dynamic® steam trap with socket weld ends as standard. Trap to be inline maintainable with complete replacement of operating internals. The trap is constructed with alloy steel, suitable for operation from 116 psig to 3,190 psig. Trap comes standard with sinter stainless fine strainer.
Spirax Sarco Thermo-Dynamic Steam Trap, Series: TD120M, 1 in Nominal, Socket Welded End Style, 6.2 in Length, 3190 psig Pressure, Steel Alloy, 572 deg F, Domestic/Import: Domestic
| Domestic/Import | : | Domestic |
| End Style | : | Socket Welded |
| Length | : | 6.2 in |
| Material | : | Steel Alloy |
| Nominal Size | : | 1 in |
| Pressure Rating | : | 3190 psig |
| Series | : | TD120M |
| Temperature Rating | : | 572 deg F |
- Maximum operating temperature: 572 deg F at 3190 psig
- Maximum allowable pressure: 3190 psig at up to 572 deg F
- Maximum allowable temperature: 1022 deg F at 0 to 1160 psig
- Cold hydraulic test pressure: 5437 psig
- Horizontal installation
Specification Sheet
