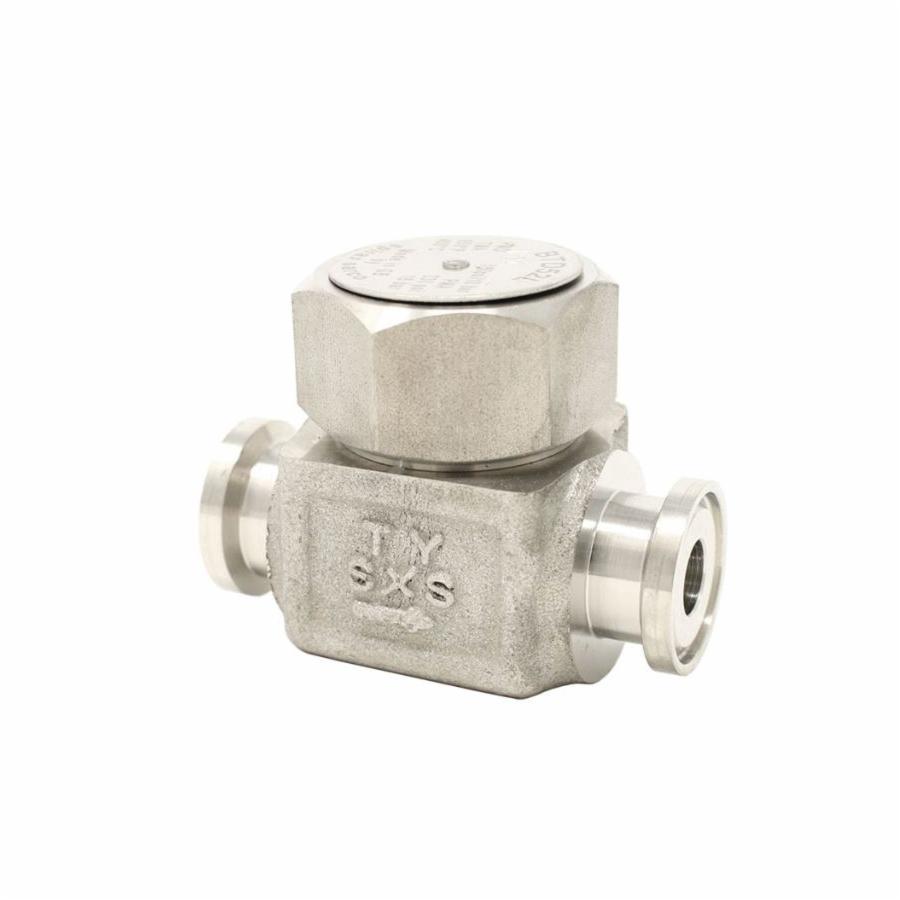

Spirax Sarco 1810298 BTD52L Thermodynamic Steam Trap
- Manufacturer: Spirax-Sarco Inc
- Brand Name: Spirax Sarco
- Part#: 211687
- MPN: 1810298
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
The BTD52L is manufactured from 316L stainless steel specifically for mains drainage applications in clean steam systems.
Spirax Sarco Thermodynamic Steam Trap, 1/2 in Nominal, Clamp, 2-1/2 in Length, 10 bar, 316L Stainless Steel, 750 deg F, 1.9 in H x 1.4 in W
| Dimensions | : | 1.9 in H x 1.4 in W |
| End Style | : | Clamp |
| Length | : | 2-1/2 in |
| Material | : | 316L Stainless Steel |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 10 bar |
| Series | : | BTD52L |
| Temperature Rating | : | 750 deg F |
- 16 bar g Maximum allowable pressure
- 450 deg C Maximum allowable temperature
- 24 bar g Maximum cold hydraulic test pressure
- PN16 Body design condition
- Disposal: The product is recyclable, no ecological hazard is anticipated with the disposal of this product, providing due care is taken
- Inline horizontal piping configuration
Specification Sheet
