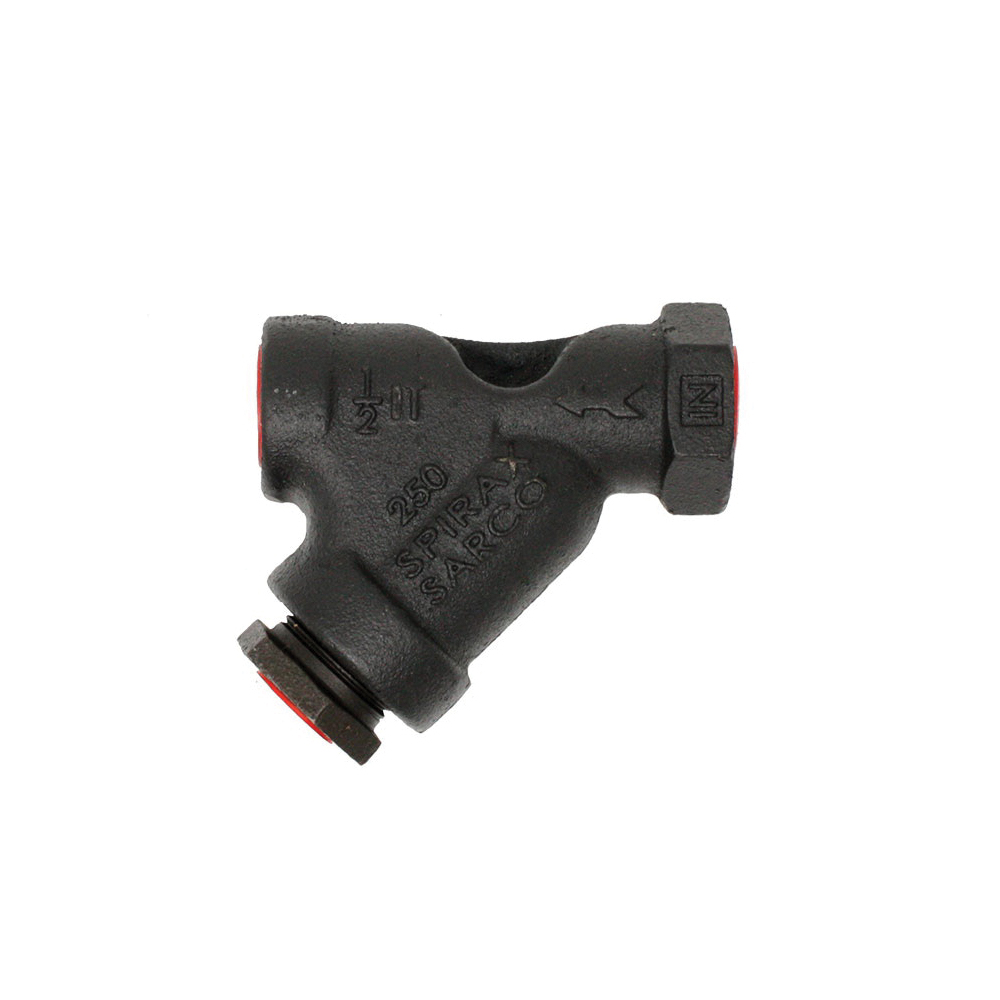

Spirax Sarco 60310 IT Wye Strainer
- Manufacturer: Spirax-Sarco Inc
- Brand Name: Spirax Sarco
- Part#: 206725
- MPN: 60310
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Spirax Sarco Wye Strainer, 1/2 in Nominal, 3.9 in Overall Length, NPT, 3/8 in NPT Blow-Off, Graphite, Cast Iron Body
| Blow-Off Size | : | 3/8 in NPT |
| Body Material | : | Cast Iron |
| Connection Type | : | NPT |
| Nominal Size | : | 1/2 in |
| Overall Length | : | 3.9 in |
| Softgoods Material | : | Graphite |
- High efficiency steam strainers for better quality steam
- Designed to remove solid particles from the steam supply
- Reduce levels of contamination
- Maintain quality of end product
- Maximum saturated steam pressure: 250 psig
- Maximum allowable temperature: 406 deg F at 0 to 250 psig
- Maximum allowable pressure: 300 psig at -20 to 150 deg F
- 3.4 in inlet to outlet
- Vertical down or horizontal piping configuration
- Graphite cap gasket
Specification Sheet
