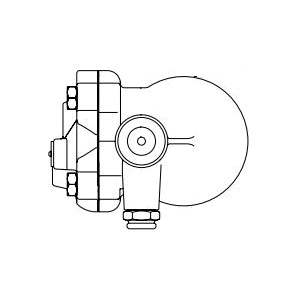

Spirax Sarco 6150066 IFT14 Ball Float and Thermostatic Steam Trap With Integral Spiratec Sensor

The IFT14 is an SG iron bodied ball float steam trap having stainless steel working internals, integral Spiratec sensor and automatic air venting facility. It can be supplied with either a WLS1 sensor to detect waterlogging and steam leakage or a SS1 sensor for steam leakage only. The IFT14 is supplied with horizontal connections, having flow from right to left (R - L), and can be simply integrated into all existing Spiratec monitoring systems.

Spirax Sarco Ball Float and Thermostatic Steam Trap, 3/4 in Nominal, NPT, 65 psig, Ductile Iron, 240 deg C

• Capsule: The BP99 / 32 capsule which is used in the FT14 is suitable for use on 150 deg C superheat at 0 barg and 50 deg C superheat at 32 barg
• Maximum allowable pressure: 16 barg at 100 deg C
• Maximum allowable temperature: 250 deg C at 13 barg
• 14 barg maximum operating pressure for saturated steam service
• Maximum cold hydraulic test pressure: 24 barg
• PN16 body design conditions

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Spirax_Sarco_6150066_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Spirax_Sarco_6150066_Specification_Sheet.pdf
