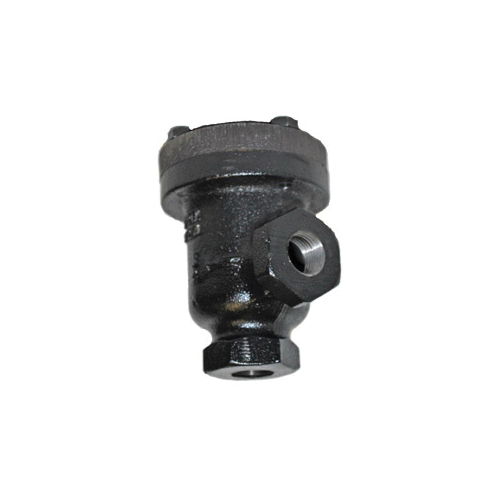

Spirax Sarco 61708 T250 Angle Pattern Balanced Pressure Thermostatic Steam Trap
- Manufacturer: Spirax-Sarco Inc
- Brand Name: Spirax Sarco
- Part#: 18557
- MPN: 61708
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
The T250 has a welded stainless steel element, which is self-adjusting over the entire operating pressure range and will discharge condensate at approximately 20 degF (11 degC) below saturated steam temperature.
Spirax Sarco Balanced Pressure Thermostatic Steam Trap, Angle Pattern, 3/4 in Nominal, NPT, 250 psig Operating, Cast Iron, 4.56 in H
| Dimensions | : | 4.56 in H |
| Domestic/Import | : | Domestic |
| End Style | : | NPT |
| Material | : | Cast Iron |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 250 psig Operating |
| Series | : | T250 |
| Type | : | Angle Pattern |
- Saturated steam operating temperature
- stainless steel internals
- Maximum allowable pressure: 250 psig at up to 450 deg F
- Maximum allowable temperature: 450 deg F at 0 to 250 psig
- 8500 lb/hr capacity hot condensate
- 0.438 in orifice
- 20 deg F below saturated steam temperature
- Horizontal installation
- Adjust automatically to varying steam pressures
- Excellent air venting characteristics during plant start-up and during normal operation
- Large discharge capacities for their size
- Robust design of the internals gives a good life expectancy
Specification Sheet
