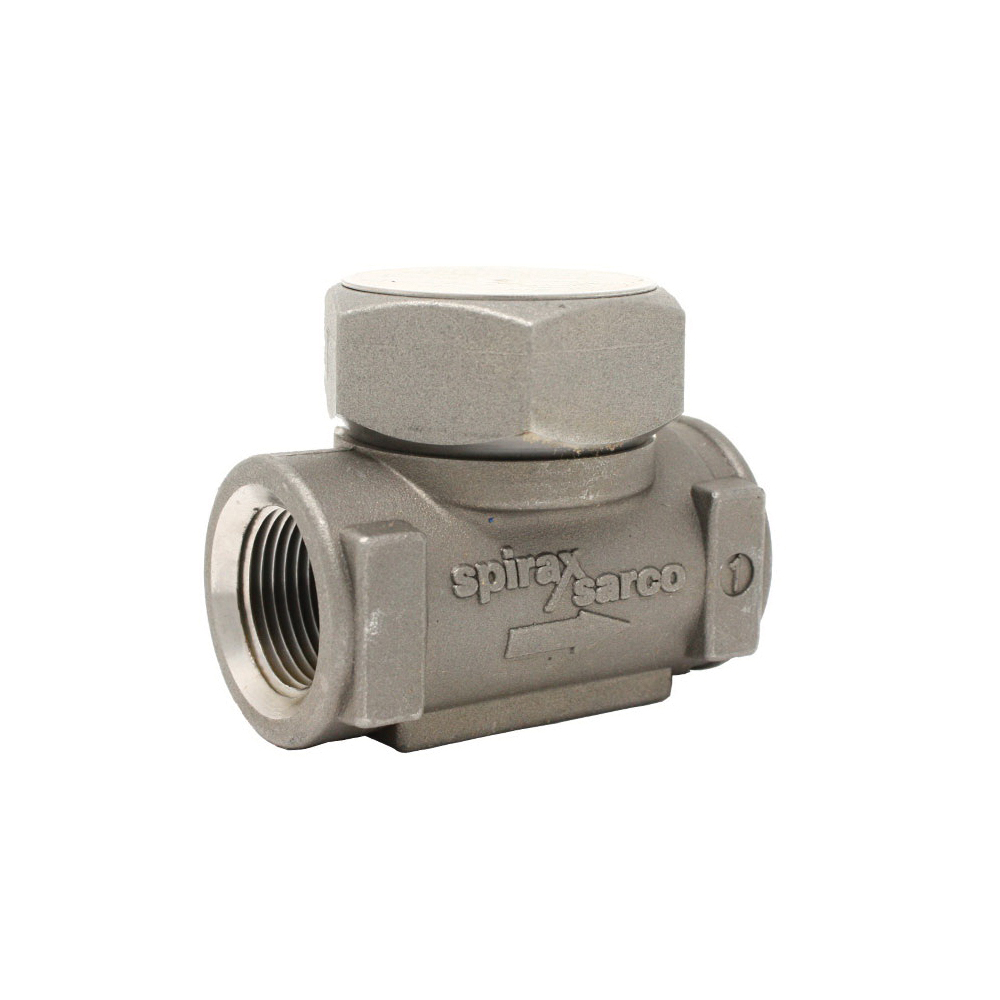

Spirax Sarco 70009 TDC Thermodynamic Steam Trap

Spirax Sarco 70009 TDC Thermodynamic Steam Trap

  • Manufacturer: Spirax-Sarco Inc
  • Brand Name: Spirax Sarco
  • Part#: 179274
  • MPN: 70009
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

The Thermo-Dynamic® steam trap cycles periodically to discharge condensate very near to steam temperature. It is unaffected by water hammer or superheat.

Spirax Sarco Thermodynamic Steam Trap, 3/4 in Nominal, NPT, 2.8 in Length, 600 psi, Stainless Steel, 800 deg F, 2.4 in H x 2.1 in W

Dimensions      :      2.4 in H x 2.1 in W
Domestic/Import      :      Domestic
End Style      :      NPT
Length      :      2.8 in
Material      :      Stainless Steel
Nominal Size      :      3/4 in
Pressure Rating      :      600 psi
Series      :      TDC
Temperature Rating      :      800 deg F
  • Minimum pressure for satisfactory operation is 3.5 psig
  • Maximum back pressure should not exceed 80% of the inlet pressure under any conditions of operation, otherwise the trap may not shut
  • 600 psig at 800 deg F Maximum allowable pressure
  • 800 deg F at 0 to 600 psig Maximum allowable temperature
  • Inline horizontal piping configuration
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Spirax_Sarco_70007_Specification_Sheet.pdf
