Titan® CV90DBB0400 101964
  1. pin-int

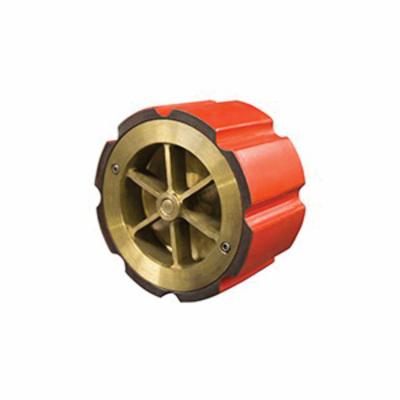

Titan CV90DBB0400 Center Guided Wafer Silent Check Valve

Titan CV90DBB0400 Center Guided Wafer Silent Check Valve

  • Manufacturer: Titan Flow Control
  • Brand Name: Titan®
  • Part#: 101964
  • MPN: CV90DBB0400
  • UPC: 046564019768
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a piping system. Often applied on the discharge side of pumps, check valves prevent the system from draining if the pump stops and protect against backflow, which could harm the pump or other equipment.

Titan® Silent Check Valve, Center Guided Wafer, Series: CV90-DI, 4 in Nominal, Flanged, 250/640 psi WOG, 150/300 lb, 100 deg F, 4 in Inlet to Outlet Length, Ductile Iron Body, 300 Stainless Steel/Buna-N/Aluminum Bronze Trim, Epoxy Painted, 7 in OD

Body Material      :      Ductile Iron
Dimensions      :      7 in OD
End Style      :      Flanged
Finish      :      Epoxy Painted
Inlet to Outlet Length      :      4 in
Nominal Size      :      4 in
Pressure Class      :      150/300 lb
Pressure Rating      :      250/640 psi WOG
Series      :      CV90-DI
Temperature Rating      :      100 deg F
Trim Material      :      300 Stainless Steel/Buna-N/Aluminum Bronze
Type      :      Center Guided Wafer
  • Designed for long service life: Newly designed CV90's have straightening vanes that reduce turbulence in incoming flow, thus minimizing noise, vibrations, erosion, cavitation's, and other factors that could result in premature valve failure
  • Head loss is minimized by providing a large cross-sectional area which exceeds that of the adjacent pipeline
  • Additionally, the spring loaded, center guided disc is designed with very low cracking pressure which reduces the amount of energy required to open the valve
  • Quick closure to reduce water hammer: Silent shut-off is achieved via the fully automatic, spring assisted disc that closes near zero flow velocity
  • The lightweight, center guided disc design creates a positive shutoff prior to flow reversal and helps to keep slamming and surges to a minimum
  • Versatile design: Sizes 2 in through 6 in utilize a unique scallop design that permits dual pressure service(ANSI class 150 and 300), sizes 8 in through 12 in are only rated for ANSI class 150
  • Resilient soft seats (FKM/Buna-N) combined with precision machined sealing surfaces allow the CV90-DI to maintain a bubble seal that meets API 598 leakage requirements, metal seats can also be furnished
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Titan_CV90DBB0200_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Titan_CV90DBB0200_Specification_Sheet.pdf
