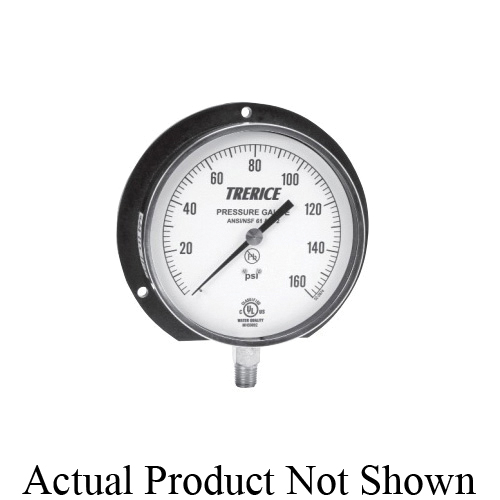

Trerice 610CB4502LA30 610CB Glass Filled Contractor Gauge
- Manufacturer: H.O. Trerice
- Brand Name: Trerice
- Part#: 610CB4502LA30_
- MPN: 610CB4502LA30
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Sold As: EACH
-
Price:
- Add To Favorites
The 610CB Trerice Contractor Gauge is designed to service the pressure measurement requirements of the construction and transportation industries. The 610CB is furnished with a corrosion resistant plastic case and an adjustable pointer. Wetted parts are a bronze tube with Lead-Free (PBF) brass socket.
Trerice Contractor Gauge, Glass Filled, Series: 610CB, 0 to 30 psi, 1/4 in MNPT, 4-1/2 in Dial Diameter, +/- 1% Full Scale Accuracy, 212 deg F, Lower Mount, Nylon Case, 5.81 in Dia x 1.45 in D
| Accuracy | : | +/- 1% Full Scale |
| Connection Size | : | 1/4 in MNPT |
| Dial Diameter | : | 4-1/2 in |
| Dimensions | : | 5.81 in Dia x 1.45 in D |
| Material | : | Nylon Case |
| Mounting Type | : | Lower |
| Pressure Range | : | 0 to 30 psi |
| Series | : | 610CB |
| Temperature Rating | : | 212 deg F |
| Type | : | Glass Filled |
- Back flanged glass filled nylon case
- Friction type, 304 stainless steel ring
- Bronze tube, brass socket lead-free (PBF) wetted parts
- Clear glass window
- 5 figure interval
- 0.5 mirror division
- Adjustable, black finished pointer
