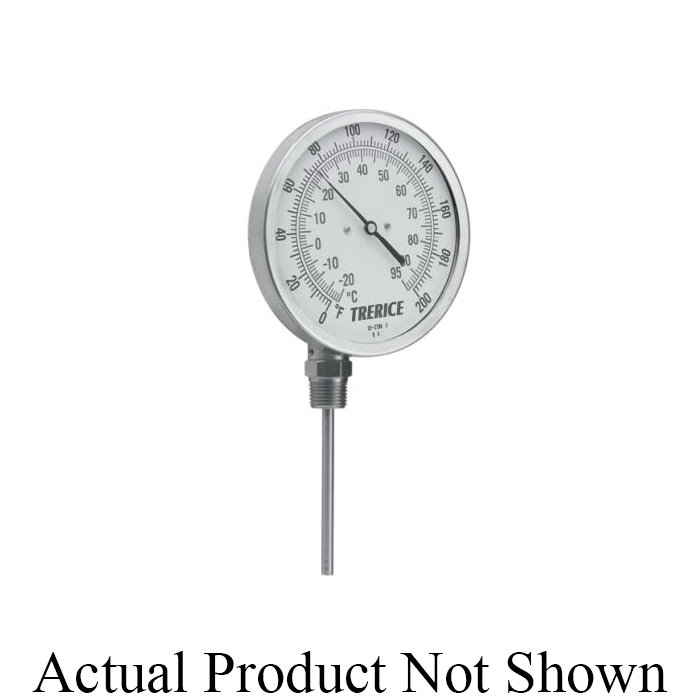

Trerice B854-06-27 Bi-Metal Thermometer
- Manufacturer: H.O. Trerice
- Brand Name: Trerice
- Part#: B854-06-27_
- MPN: B854-06-27
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
The Trerice rear connect bimetal thermometer has been designed to meet the needs of standard industrial applications and installations. This instrument features a stainless steel, hermetically sealed case, providing weather tight protection.
Trerice Bi-Metal Thermometer, 5 in Dial, 1/2 in NPT, Connection Location: Bottom, 6 in Stem Length, 0 to 250 deg F, 300 Stainless Steel
| Connection Location | : | Bottom |
| Connection Type | : | 1/2 in NPT |
| Dial | : | 5 in |
| Material | : | 300 Stainless Steel |
| Stem Length | : | 6 in |
| Temperature Rating | : | 0 to 250 deg F |
- For corrosive or pressure applications, use of a thermowell is recommended to prevent damage to the thermometer and facilitate its removal from the process
- Case: 300 stainless steel, hermetically sealed
- 300 stainless steel and 1/4 in dia stem
- Coil: bimetallic, silicone dampened ranges to 300 deg F (148 deg C), above 300 deg F not dampened
- Double strength glass window
- Balanced, black finished pointer
- Aluminum dial face, white background with black and blue graduations and markings
- +/-1.0% full scale ASME B40.3 grade A accuracy
- External reset
- Dual scale
- 50 deg F figure intervals/2 deg F minor divisions, 20 deg C figure intervals/2 deg C minor divisions
Specification Sheet
VIDEO LINK
