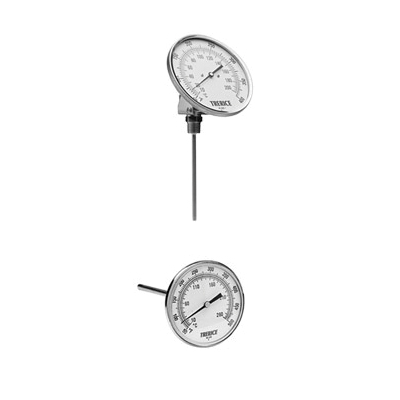

Trerice B856-06-0-100 Bimetal Thermometer

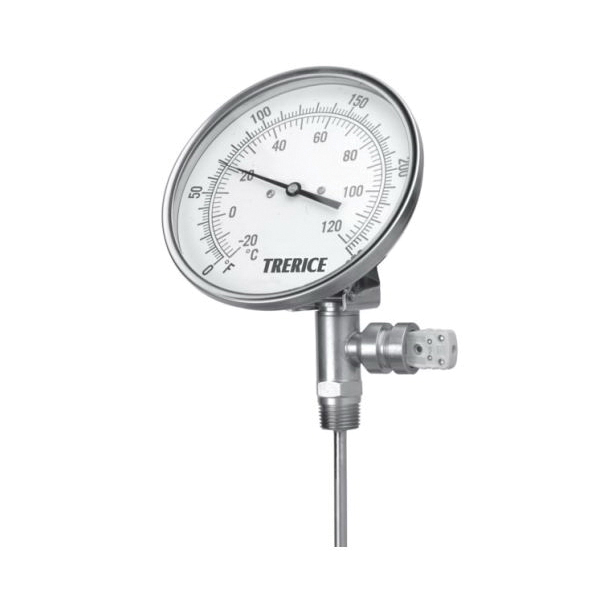

The Trerice Bimetal Plus has all the standard features of the Trerice Bimetal Thermometer, but with a ''Plus.'' The ''Plus'' being an internally mounted thermocouple or RTD. This allows for remote temperature monitoring while still providing local indication. This dual sensor design eliminates the need for additional instrumentation or connections when designing a system to include both mechanical and electronic temperature sensing.

Trerice Bimetal Thermometer, Series: B856, Thermocouple Sensing Element, 5 in Dial, 1/2 in NPT Connection

• Local indication/remote data acquisition
• 300 stainless steel, hermetically sealed case
• 300 stainless steel, 1/4 in dia stem
• Bimetallic, silicone dampened on ranges to 300 deg F, above 300 deg F not dampened coil
• T/C: miniature plug, RTD: plug with molded cordset electrical connection
• Double strength glass window
• Balanced, black finished pointer
• Aluminum, white background with black and blue graduations and markings dial face
• +/- 1.0 % full scale ASME B40.3 Grade A accuracy
• 3-1/2 in minimum insertion length for all ranges
• External reset
• Stainless steel case

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/H_O_Trerice_B856-06-0-100_Specification_Sheet.pdf
