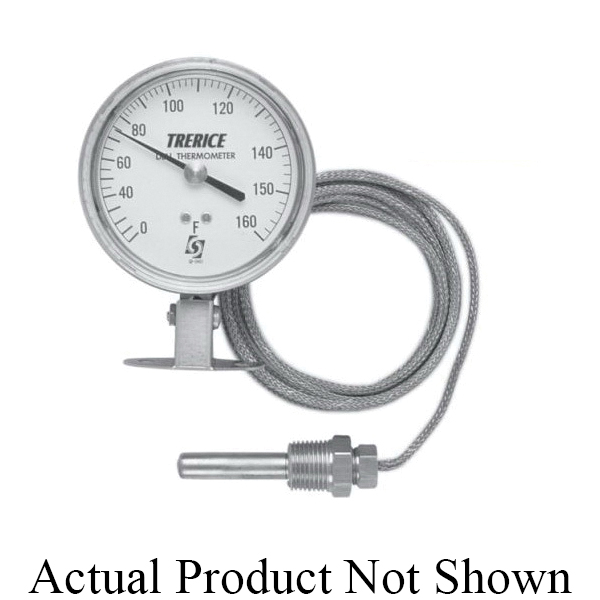

Trerice V-80025-110-B-01-05 Remote Mounted Dial Thermometer

Trerice V-80025-110-B-01-05 Remote Mounted Dial Thermometer

  • Manufacturer: H.O. Trerice
  • Brand Name: Trerice
  • Part#: V-80025-110-B-01-05_
  • MPN: V-80025-110-B-01-05
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

The Trerice Remote Mounted Dial Thermometer is used extensively in the building and construction industry and is the preferred temperature instrument for OEMs worldwide. The stainless steel case is available in many styles for panel and surface mounting. This instrument has a 31/2 in dial size and is available with either vapor or liquid actuation.

Trerice Dial Thermometer, Remote Mounted, 3-1/2 in Dial, 30 to 240 deg F, Stainless Steel

Dial      :      3-1/2 in
Material      :      Stainless Steel
Temperature Rating      :      30 to 240 deg F
Type      :      Remote Mounted
  • For applications where the process media may be corrosive or contained under pressure, the use of a thermowell is required to prevent damage to the thermometer and facilitate its removal from the process
  • Adjustable angle with mounting bracket case
  • Acrylic, snap-in with nitrile O-ring seal window
  • Adjustable, black finish pointer
  • Aluminum/white background with black graduations and markings dial face
  • +/-1 scale division accuracy
  • Vapor actuated
  • 5 ft capillary length
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/H_O_Trerice_V-80025-110-B-01-05_Specification_Sheet.pdf
  • linkVIDEO LINK https://youtu.be/zK_lYiUEt2Y
