Tylok® SS-4-DATPF-8 361052
  1. pin-int

Tylok® CBC-Lok® SS-4-DATPF-8 DATPF Double Ferrule Adapter, 1/4 x 1/2 in, Tube x FNPT, 316 Stainless Steel, Domestic

Tylok® CBC-Lok® SS-4-DATPF-8 DATPF Double Ferrule Adapter, 1/4 x 1/2 in, Tube x FNPT, 316 Stainless Steel, Domestic

  • Manufacturer: Tylok International
  • Brand Name: Tylok®
  • Part#: 361052
  • MPN: SS-4-DATPF-8
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.

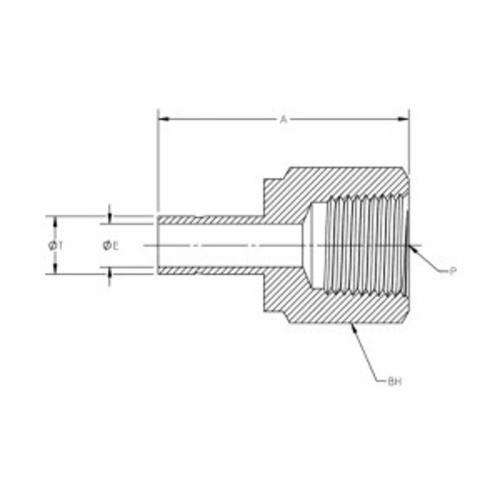

Tylok® CBC-Lok® Adapter, Double Ferrule, Series: DATPF, Fitting/Connector Type: Adapter, 1/4 x 1/2 in Nominal Size, Tube x FNPT, 1-1/16 in Hex, 1.812 in Length, 316 Stainless Steel, Domestic

Domestic/Import      :      Domestic
End Style      :      Tube x FNPT
Fitting/Connector Type      :      Adapter
Hex Size      :      1-1/16 in
Length      :      1.812 in
Material      :      316 Stainless Steel
Nominal Size      :      1/4 x 1/2 in
Series      :      DATPF
Type      :      Double Ferrule
  • Double ferrule swaging action
  • Total component interchangeability
  • Heat code traceable
  • ASTM material construction
  • 1/2-14 NPT pipe thread
  • 90 Rb hardness
  • Interchanges with 4-TA-7-8 and 4FA8N
