Tylok® SS-4-DFE-4 259175
  1. pin-int

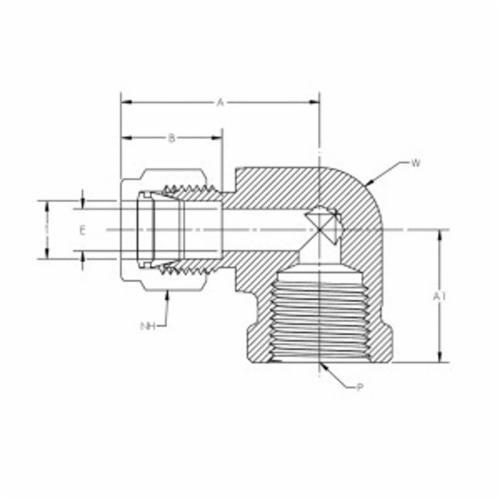

Tylok® CBC-Lok® SS-4-DFE-4 DFE 90 deg Double Ferrule Female Elbow, 1/4 in, Tube x FNPT, 316 Stainless Steel, Domestic

Tylok® CBC-Lok® SS-4-DFE-4 DFE 90 deg Double Ferrule Female Elbow, 1/4 in, Tube x FNPT, 316 Stainless Steel, Domestic

  • Manufacturer: Tylok International
  • Brand Name: Tylok®
  • Part#: 259175
  • MPN: SS-4-DFE-4
  • UPC: 811731022700
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • Branch Availability

CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.

Tylok® CBC-Lok® Female Elbow, Double Ferrule, Series: DFE, Fitting/Connector Type: 90 deg Elbow, 1/4 in Nominal Size, Tube x FNPT, 316 Stainless Steel, Domestic

Domestic/Import      :      Domestic
End Style      :      Tube x FNPT
Fitting/Connector Type      :      90 deg Elbow
Material      :      316 Stainless Steel
Nominal Size      :      1/4 in
Series      :      DFE
Type      :      Double Ferrule
  • Double ferrule swaging action
  • Total component interchangeability
  • Heat code traceable
  • 9/16 in nut
  • 1/4-18 NPT pipe thread
  • 90 Rb hardness
  • Interchanges with 400-8-4 and 4FEL4N
