Tylok® SS-8-DME-12 259181
  1. pin-int

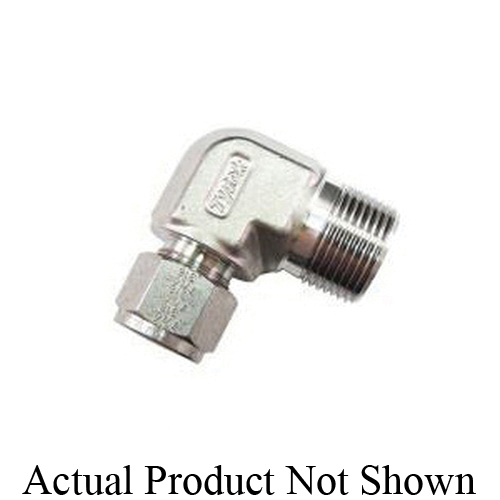

Tylok® CBC-Lok® SS-8-DME-12 DME Double Ferrule 90 deg Male Elbow, 1/2 x 1/8 in Nominal, Tube x MNPT End Style, Stainless Steel, Domestic

Tylok® CBC-Lok® SS-8-DME-12 DME Double Ferrule 90 deg Male Elbow, 1/2 x 1/8 in Nominal, Tube x MNPT End Style, Stainless Steel, Domestic

  • Manufacturer: Tylok International
  • Brand Name: Tylok®
  • Part#: 259181
  • MPN: SS-8-DME-12
  • UPC: 811731021918
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although itis always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.

Tylok® CBC-Lok® Male Elbow, Double Ferrule, Series: DME, 90 deg Elbow Fitting/Connector, 1/2 x 1/8 in Nominal, Tube x MNPT End Style, -20 to 1000 deg F, Stainless Steel, Domestic

Domestic/Import      :      Domestic
End Style      :      Tube x MNPT
Fitting/Connector Type      :      90 deg Elbow
Material      :      Stainless Steel
Nominal Size      :      1/2 x 1/8 in
Series      :      DME
Temperature Rating      :      -20 to 1000 deg F
Type      :      Double Ferrule
  • Total component interchangeability
  • Heat code traceable
  • 7/8 in hex nut
  • 90 Rb hardness
  • 0.406 in thru hole
  • Double ferrule swaging action system
