Tylok® SS-8-DRATT-4 372769
  1. pin-int

Tylok® CBC-Lok® SS-8-DRATT-4 DRATT Double Ferrule Reducing Adapter, 1/2 x 1/4 in, Tube, 316 Stainless Steel, Domestic

Tylok® CBC-Lok® SS-8-DRATT-4 DRATT Double Ferrule Reducing Adapter, 1/2 x 1/4 in, Tube, 316 Stainless Steel, Domestic

  • Manufacturer: Tylok International
  • Brand Name: Tylok®
  • Part#: 372769
  • MPN: SS-8-DRATT-4
  • UPC: 811731023868
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.

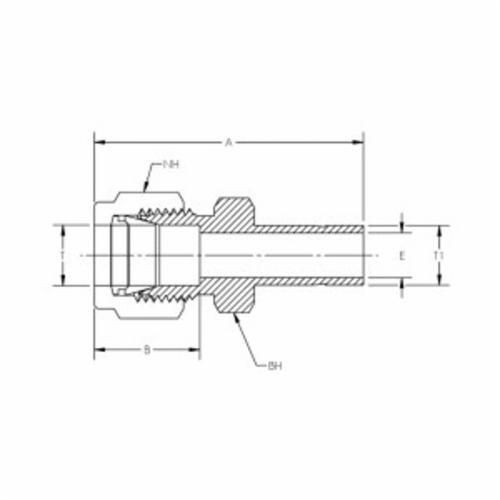

Tylok® CBC-Lok® Reducing Adapter, Double Ferrule, Series: DRATT, Fitting/Connector Type: Adapter, 1/2 x 1/4 in Nominal Size, Tube, 13/16 in Hex, 1.773 in Length, 316 Stainless Steel, Domestic

Domestic/Import      :      Domestic
End Style      :      Tube
Fitting/Connector Type      :      Adapter
Hex Size      :      13/16 in
Length      :      1.773 in
Material      :      316 Stainless Steel
Nominal Size      :      1/2 x 1/4 in
Series      :      DRATT
Type      :      Double Ferrule
  • Double ferrule swaging action
  • Total component interchangeability
  • Heat code traceable
  • ASTM material construction
  • 7/8 in nut
  • 1/4-18 NPT pipe thread
  • 90 Rb hardness
  • Interchanges with 810-R-4 and 4TUR8
