Victaulic® 11-3IN-GLV 11-3IN-GLV_
  1. pin-int

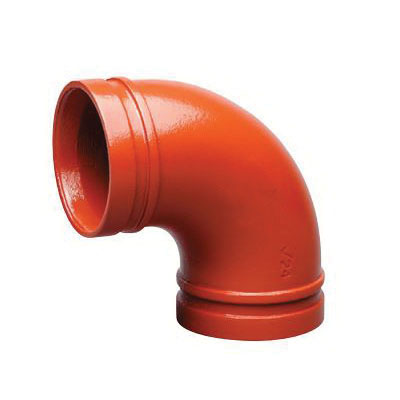

Victaulic® 11-3IN-GLV 11 Radius Elbow, 3 in, Grooved, Ductile Iron

Victaulic® 11-3IN-GLV 11 Radius Elbow, 3 in, Grooved, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: 11-3IN-GLV_
  • MPN: 11-3IN-GLV
  • UPC: 688304053559
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Fittings are supplied with grooved or shouldered ends to permit fast installation without field preparation. Fittings conform to the pressure ratings of Style 77 flexible couplings. Not intended for use with Victaulic couplings for plain end pipe.

Victaulic® Elbow, Standard Radius, Series: 11 Series, Fitting/Connector Type: 45 deg Elbow, 3 in Nominal, Grooved, 1000 psi, Ductile Iron, Hot Dipped Galvanized, 3-1/2 in OD, Import

Dimensions      :      3-1/2 in OD
Domestic/Import      :      Import
End Style      :      Grooved
Finish      :      Hot Dipped Galvanized
Fitting/Connector Type      :      45 deg Elbow
Material      :      Ductile Iron
Nominal Size      :      3 in
Pressure Rating      :      1000 psi
Series      :      11 Series
Type      :      Standard Radius
  • Standard fitting pressure ratings conform to ratings of installed coupling
  • All fittings supplied with grooves for fast installation
  • 3-1/2 in OD
  • 2-1/2 in center to end
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_L024641PE0_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_10_2IN_PNT_Specification_Sheet.pdf
