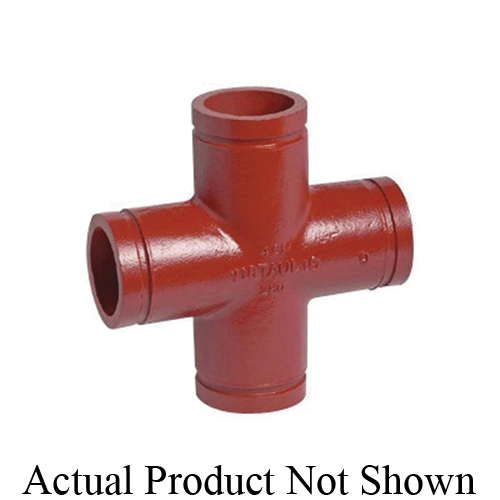

Victaulic® A040035PD0 35-C Cross, 4 in, Grooved, Ductile Iron
- Manufacturer: Victaulic
- Brand Name: Victaulic®
- Part#: A040035PD0_
- MPN: A040035PD0
- UPC: 883481061322
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Victaulic® Cross, Series: 35-C, Fitting/Connector Type: Cross, 4 in Nominal, Grooved, 350 psi, Cast, Ductile Iron, Orange Painted
| End Style | : | Grooved |
| Finish | : | Orange Painted |
| Fitting/Connector Type | : | Cross |
| Material | : | Ductile Iron |
| Method of Manufacture | : | Cast |
| Nominal Size | : | 4 in |
| Pressure Rating | : | 350 psi |
| Series | : | 35-C |
- AWWA size fittings are supplied with rigid radius grooves in accordance with ANSI/AWWA C-606
- Fittings conform to ANSI 21.10/AWWA C-110 for center-to-end dimensions and AWWA C-153 or ANSI 21.10/AWWA C-110 for wall thicknesses
- Victaulic® can supply tapped fittings that meet ANSI B16.1 dimension locations
