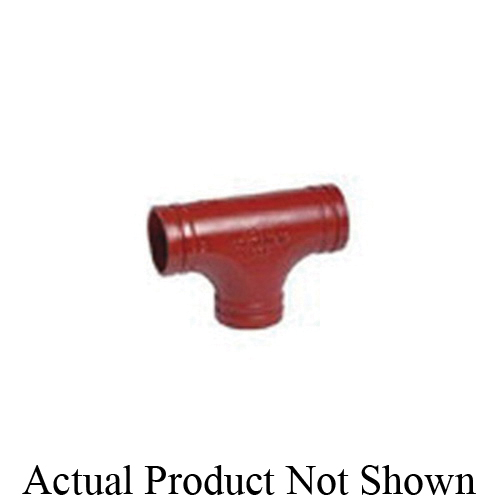

Victaulic® A100020IHL 20-C Tee, 10 in, Grooved, Ductile Iron

Victaulic® A100020IHL 20-C Tee, 10 in, Grooved, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: A100020IHL_
  • MPN: A100020IHL
  • UPC: 688304144486
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® Tee, Series: 20-C, Fitting/Connector Type: Tee, 10 in Nominal, Grooved, 350 psi, Cast, Ductile Iron, Orange Painted, 11.1 in OD

Dimensions      :      11.1 in OD
End Style      :      Grooved
Finish      :      Orange Painted
Fitting/Connector Type      :      Tee
Material      :      Ductile Iron
Method of Manufacture      :      Cast
Nominal Size      :      10 in
Pressure Rating      :      350 psi
Series      :      20-C
  • AWWA size fittings are supplied with rigid radius grooves in accordance with ANSI/AWWA C-606
  • Fittings conform to ANSI 21.10/AWWA C-110 for center-to-end dimensions and AWWA C-153 or ANSI 21.10/AWWA C-110 for wall thicknesses
  • Victaulic® can supply tapped fittings that meet ANSI B16.1 dimension locations
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_C040031GMX_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_A030030PF0_Specification_Sheet.pdf
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_C040031GMX_Technical_Bulletin.pdf
