Victaulic® A120035PF0 A120035PF0_
  1. pin-int

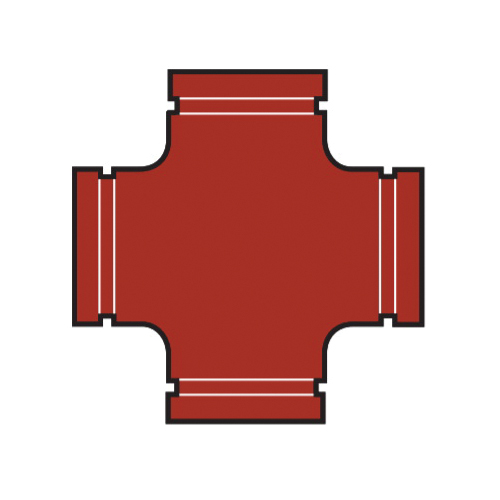

Victaulic® A120035PF0 35-C Cross, 12 in, Grooved, Ductile Iron

Victaulic® A120035PF0 35-C Cross, 12 in, Grooved, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: A120035PF0_
  • MPN: A120035PF0
  • UPC: 688304281600
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® Cross, Series: 35-C, Fitting/Connector Type: Cross, 12 in Nominal, Grooved End Style, Up to 350 psi Pressure, Cast Method of Manufacture, Ductile Iron, 13.2 in OD, Domestic

Dimensions      :      13.2 in OD
Domestic/Import      :      Domestic
End Style      :      Grooved
Fitting/Connector Type      :      Cross
Material      :      Ductile Iron
Method of Manufacture      :      Cast
Nominal Size      :      12 in
Pressure Rating      :      Up to 350 psi
Series      :      35-C
  • AWWA size fittings are supplied with rigid radius grooves in accordance with ANSI/AWWA C-606
  • Victaulic® can supply tapped fittings that meet ANSI B16.1 dimension locations
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_A040013PD4_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_A040013PD4_Specification_Sheet.pdf
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_A010AQBNAP_Warranty.pdf
