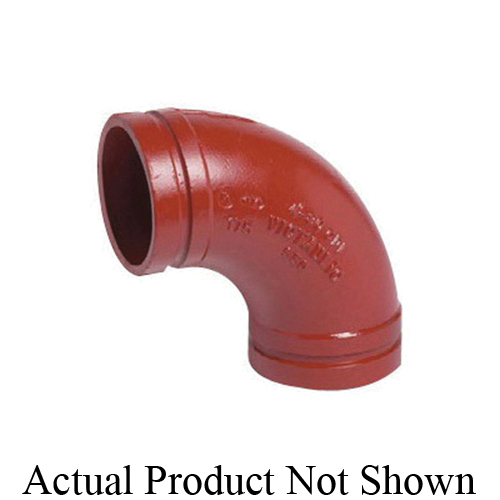

Victaulic® A300011PFL 11-C Elbow, 30 in, Grooved, Ductile Iron
- Manufacturer: Victaulic
- Brand Name: Victaulic®
- Part#: A300011PFL_
- MPN: A300011PFL
- UPC: 688304006241
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Victaulic® Elbow, Series: 11-C, Fitting/Connector Type: 45 deg Elbow, 30 in Nominal, Grooved, 350 psi, Cast, Ductile Iron, Orange Painted, 32 in OD
| Dimensions | : | 32 in OD |
| End Style | : | Grooved |
| Finish | : | Orange Painted |
| Fitting/Connector Type | : | 45 deg Elbow |
| Material | : | Ductile Iron |
| Method of Manufacture | : | Cast |
| Nominal Size | : | 30 in |
| Pressure Rating | : | 350 psi |
| Series | : | 11-C |
- AWWA size fittings are supplied with rigid radius grooves in accordance with ANSI/AWWA C-606
- Fittings conform to ANSI 21.10/AWWA C-110 for center-to-end dimensions and AWWA C-153 or ANSI 21.10/AWWA C-110 for wall thicknesses
- Victaulic® can supply tapped fittings that meet ANSI B16.1 dimension locations
- Supplied with rigid radius grooves in accordance with ANSI/AWWA C-606 and connects pipe, provides change in direction and adapts sizes or components
