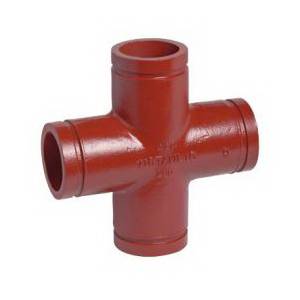

Victaulic® AD19035UDK 35-C AWWA Pipe Cross, 4 in, Grooved, Ductile Iron

Victaulic® AD19035UDK 35-C AWWA Pipe Cross, 4 in, Grooved, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: AD19035UDK_
  • MPN: AD19035UDK
  • UPC: 688304148729
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Supplied with rigid radius grooves in accordance with ANSI/AWWA C-606. Fittings conform to ANSI 21.10/AWWA C-110 for center-to-end dimensions and AWWA C-153 or ANSI 21.10/AWWA C-110 for wall thickness. Available with a wide variety of coatings and linings. Tapped fittings also available.

Victaulic® AWWA Pipe Cross, Series: 35-C, Fitting/Connector Type: Cross, 4 in Nominal, Grooved, 350 psi, Ductile Iron

End Style      :      Grooved
Fitting/Connector Type      :      Cross
Material      :      Ductile Iron
Nominal Size      :      4 in
Pressure Rating      :      350 psi
Series      :      35-C
  • Available with a wide variety of coatings and linings
  • Victaulic can supply tapped fittings that meet ANSI B16.1 dimension locations, specify fitting size, tap location by letter on order
  • Fittings conform to ANSI 21.10/AWWA C-110 for center-to-end dimensions and AWWA C-153 or ANSI 21.10/AWWA C-110 for wall thicknesses
  • AWWA size fittings are supplied with rigid radius grooves in accordance with ANSI/AWWA C-606
  • 1/2 in Center tap
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_NM18000026_Catalog.pdf
