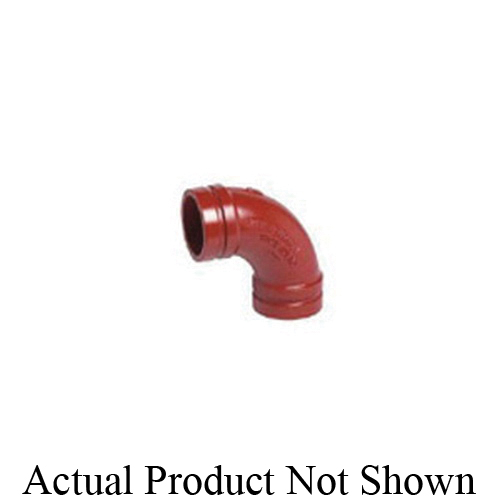

Victaulic® AD44010PD0 10-CR Reducing Elbow, 4 x 3 in, Grooved, Ductile Iron

Victaulic® AD44010PD0 10-CR Reducing Elbow, 4 x 3 in, Grooved, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: AD44010PD0_
  • MPN: AD44010PD0
  • UPC: 688304326585
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Pipe of AWWA dimensions can be joined quickly and easily with the Victaulic® grooved piping method. Victaulic® products and recommendations conform to ANSI/AWWA C-606, Standard for Grooved and Shouldered Type Joints and CSA 242 M1980. The groove configuration for ductile (cast) pipe includes a large radius, eliminating sharp corners and stress concentration. This provides stronger beam load capability and higher working pressures for radius grooved systems than available with conventional flanged systems.

Victaulic® Reducing Elbow, Series: 10-CR, Fitting/Connector Type: 90 deg Elbow, 4 x 3 in Nominal, Grooved, 350 psi, Cast, Ductile Iron, Orange Painted

End Style      :      Grooved
Finish      :      Orange Painted
Fitting/Connector Type      :      90 deg Elbow
Material      :      Ductile Iron
Method of Manufacture      :      Cast
Nominal Size      :      4 x 3 in
Pressure Rating      :      350 psi
Series      :      10-CR
  • AWWA size fittings are supplied with rigid radius grooves in accordance with ANSI/AWWA C-606
  • Connects pipe, provides change in direction and adapts sizes or components
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_C040031GMX_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_A030030PF0_Specification_Sheet.pdf
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_C040031GMX_Technical_Bulletin.pdf
