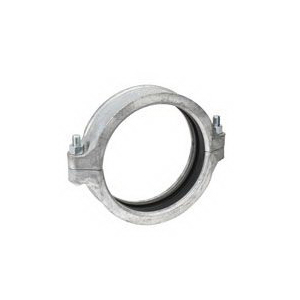

Victaulic® AGS™ W140089GL1 W89 Pipe Rigid Coupling With Gasket, 14 in, Grooved, Ductile Iron

This rigid coupling greatly reduces linear and angular movement at valve connections and other points where rigidity is required. The Style W89 is suitable for use where the corrosion resistant properties of stainless steel are not required for the external environment. Working pressures shown are for Schedule 10S stainless steel pipe AGS roll grooved in accordance with Victaulic specifications.

Victaulic® AGS™ Pipe Rigid Coupling, Series: W89, Fitting/Connector Type: Coupling, 14 in Nominal, Grooved, 300 psi, Ductile Iron, Hot Dipped Galvanized, 14 in OD

• Unique wedge-shaped key profile increases allowable pipe end separation, resulting in easier assembly
• Galvanized ductile iron housing designed for use on schedule 10S stainless steel pipe
• Provide rigidity for valve connections, machinery rooms, and long straight runs
• Flushseal grade L silicone gasket
• Warning: For one time field test only, the maximum joint working pressure may be increased to 1-1/2 times the figures shown

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_NM18000026_Catalog.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_W140089GL1_Specification_Sheet.pdf
