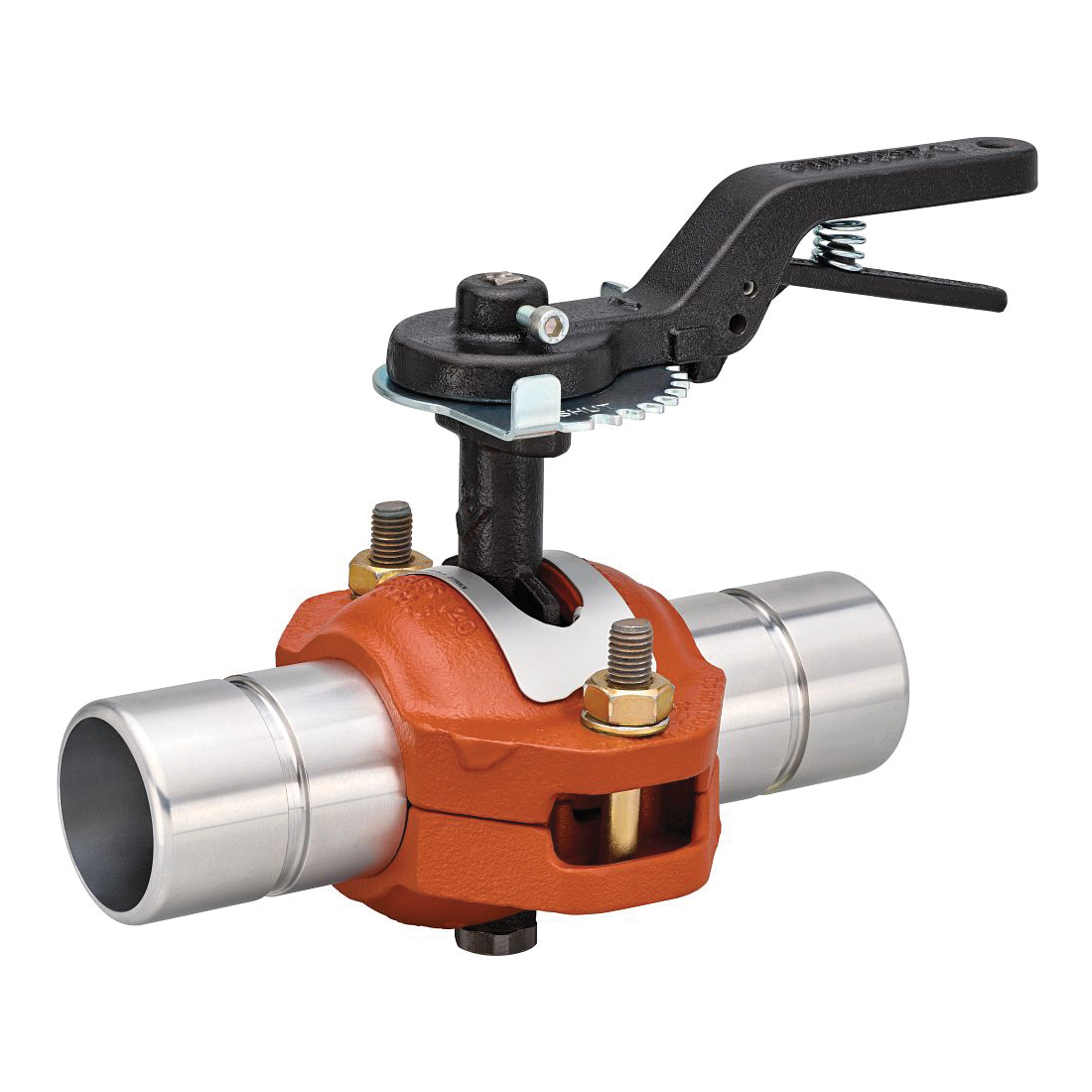

Victaulic® Aquamine™ V030957PE2 2957 Series Type V Butterfly Valve, 3 in
- Manufacturer: Victaulic
- Brand Name: Victaulic®
- Part#: V030957PE2_
- MPN: V030957PE2
- UPC: 195150174074
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Victaulic® Aquamine™ Butterfly Valve, Type V, Series: 2957 Series, 3 in Nominal, -30 to 194 deg F, Media: Water, 10-Position Lever Lock Handle Actuator, 12.88 in Inlet to Outlet Length, 6.38 in Top to Inlet Center, Ductile Iron Body, 316 Stainless Steel Disc, Polyisoprene Softgoods, Orange Painted, 3-1/2 in OD, Domestic
| Actuator Type | : | 10-Position Lever Lock Handle |
| Body Material | : | Ductile Iron |
| Dimensions | : | 3-1/2 in OD |
| Disc Material | : | 316 Stainless Steel |
| Domestic/Import | : | Domestic |
| Finish | : | Orange Painted |
| Inlet to Outlet Length | : | 12.88 in |
| Media | : | Water |
| Nominal Size | : | 3 in |
| Series | : | 2957 Series |
| Softgoods Material | : | Polyisoprene |
| Temperature Rating | : | -30 to 194 deg F |
| Top to Inlet Center | : | 6.38 in |
| Type | : | Type V |
- Designed for bi-directional service to full working pressure
- Pressures up to 250 psi
- Polyisoprene O-ring
Instruction/Installation Manual
