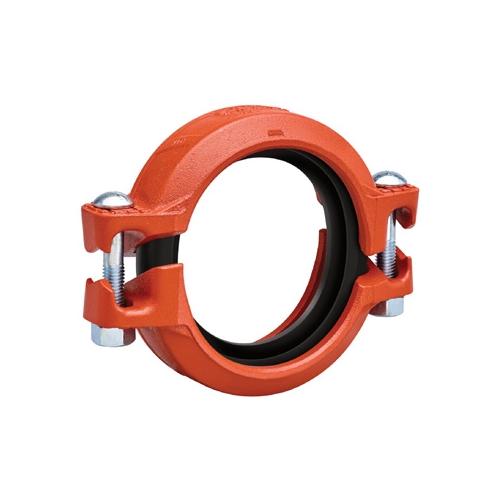

Victaulic® C060107GT0 107 Rigid Coupling, 6 in, Ductile Iron, Orange

Victaulic® C060107GT0 107 Rigid Coupling, 6 in, Ductile Iron, Orange

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: C060107GT0_
  • MPN: C060107GT0
  • UPC: 195150335673
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic®, C060107GT0, Rigid Coupling, Series: 107, Fitting/Connector: Coupling, 6 in Nominal, SCH 10 Schedule, 750 psi Pressure, Ductile Iron, Orange, -30 to 250 deg F, 6-5/8 in OD Dimensions, Domestic

Color      :      Orange
Dimensions      :      6-5/8 in OD
Domestic/Import      :      Domestic
Finish      :      Orange
Fitting/Connector Type      :      Coupling
Material      :      Ductile Iron
Nominal Size      :      6 in
Pressure Rating      :      750 psi
Schedule Rating      :      SCH 10
Series      :      107
Temperature Rating      :      -30 to 250 deg F
  • Working pressure dependent on pipe material, wall thickness and size of pipe
  • Dependent on gasket selection from section 3.0
  • Joins carbon steel or stainless steel pipe prepared with the Victaulic Original Groove System groove profile
  • Provides a rigid pipe joint designed to restrict axial or angular movement
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_C060107GT0_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_C060107GT0_Specification_Sheet.pdf
