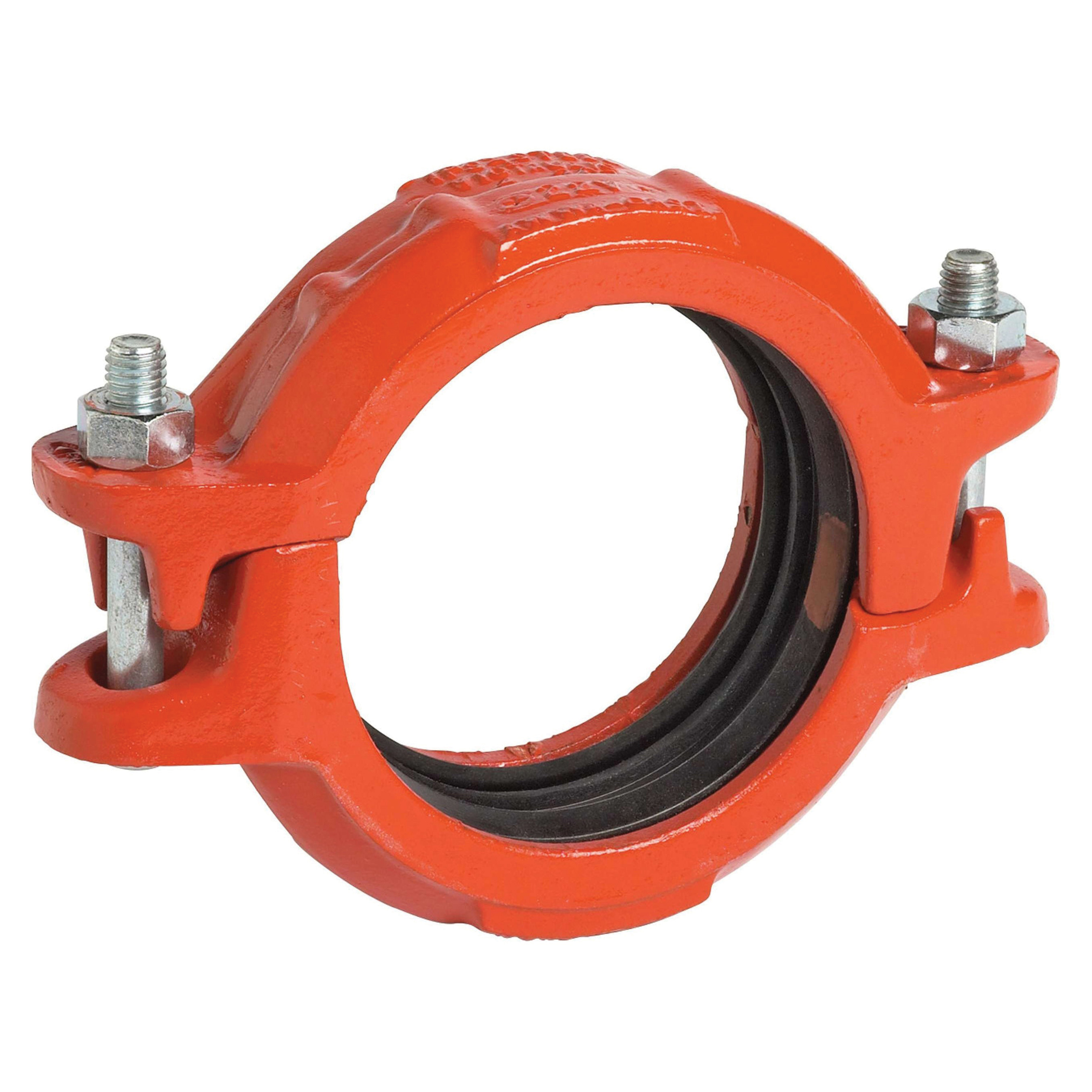

Victaulic® C120307PM7 307 Transition Coupling, 12 in, Grooved, Ductile Iron, Enamel Painted
- Manufacturer: Victaulic
- Brand Name: Victaulic®
- Part#: C120307PM7_
- MPN: C120307PM7
- UPC: 688304494727
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Pipe of AWWA dimensions can be joined quickly and easily with the Victaulic® grooved piping method. Victaulic® products and recommendations conform to ANSI/AWWA C-606, Standard for Grooved and Shouldered Type Joints and CSA 242 M1980. The groove configuration for ductile (cast) pipe includes a large radius, eliminating sharp corners and stress concentration. This provides stronger beam load capability and higher working pressures for radius grooved systems than available with conventional flanged systems.
Victaulic® Transition Coupling, Series: 307, Fitting/Connector Type: Coupling, 12 in Nominal, Grooved, 2.63 in Thickness, 18.94 in Length, 350 psi, Cast, Ductile Iron, Enamel Painted, Orange, 13.2 in OD
| Color | : | Orange |
| Dimensions | : | 13.2 in OD |
| End Style | : | Grooved |
| Finish | : | Enamel Painted |
| Fitting/Connector Type | : | Coupling |
| Length | : | 18.94 in |
| Material | : | Ductile Iron |
| Method of Manufacture | : | Cast |
| Nominal Size | : | 12 in |
| Pressure Rating | : | 350 psi |
| Series | : | 307 |
| Thickness | : | 2.63 in |
- Single transition for connecting grooved end IPS steel to grooved end AWWA ductile iron
- Designed for Class 53 or higher pipe
- Grade "M" Flush-Seal™ gasket
