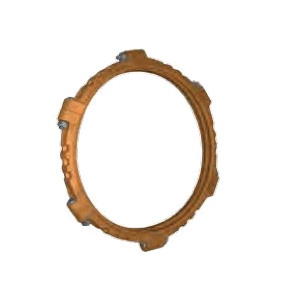

Victaulic® C170022PE0 22 Series Coupling, 17 in, Ductile Iron
- Manufacturer: Victaulic
- Brand Name: Victaulic®
- Part#: C170022PE0_
- MPN: C170022PE0
- UPC: 688304776656
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Style 22 couplings are designed with cross-ribbed construction to provide a strong component for VicRing adapter prepared piping systems. Style 22 couplings are designed primarily for use with Type "A" Vic-Ring adapters, depending upon sizes and pressures.
Victaulic® Coupling, Series: 22 Series, Fitting/Connector Type: Coupling, 17 in Nominal, 3.06 in Thickness, 23.41 in Length, 200 psi, Ductile Iron, Orange Painted, Orange, -30 to 230 deg F, 17.031 in OD
| Color | : | Orange |
| Dimensions | : | 17.031 in OD |
| Finish | : | Orange Painted |
| Fitting/Connector Type | : | Coupling |
| Length | : | 23.41 in |
| Material | : | Ductile Iron |
| Nominal Size | : | 17 in |
| Pressure Rating | : | 200 psi |
| Series | : | 22 Series |
| Temperature Rating | : | -30 to 230 deg F |
| Thickness | : | 3.06 in |
- Grade "E" EPDM gasket
Specification Sheet
