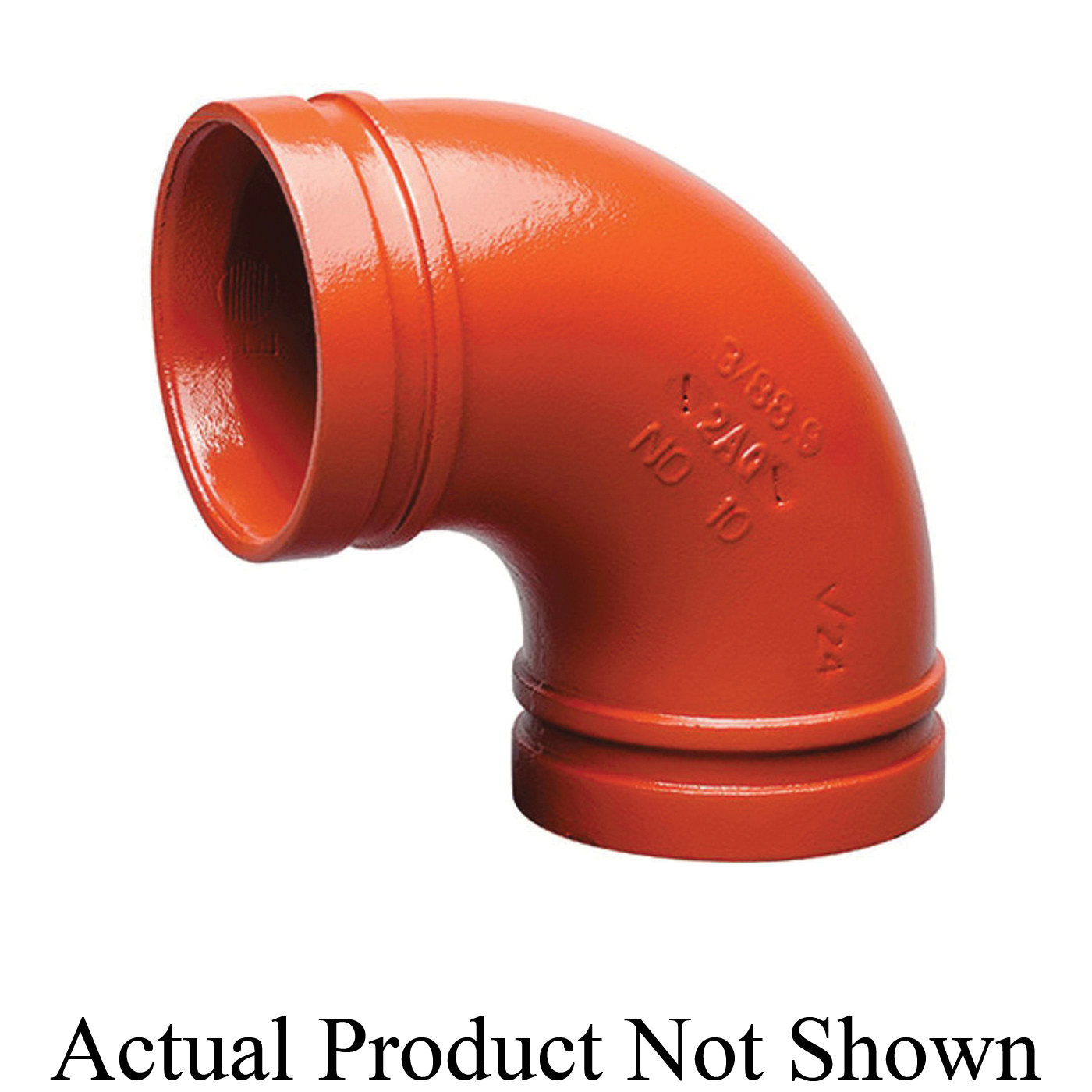

Victaulic® F010010G00 Pipe 90 deg Elbow, 1 in, Grooved, Ductile Iron

Victaulic® F010010G00 Pipe 90 deg Elbow, 1 in, Grooved, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: F010010G00_
  • MPN: F010010G00
  • UPC: 688304047176
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® Pipe Elbow, Series: 10 Series, Fitting/Connector Type: 90 deg Elbow, 1 in Nominal, Grooved, Ductile Iron, Hot Dipped Galvanized, 1.315 in OD

Dimensions      :      1.315 in OD
End Style      :      Grooved
Finish      :      Hot Dipped Galvanized
Fitting/Connector Type      :      90 deg Elbow
Material      :      Ductile Iron
Nominal Size      :      1 in
Series      :      10 Series
  • Standard fitting pressure ratings conform to ratings of installed coupling
  • All fittings supplied with grooves or shoulders for fast installation
  • Connects pipe, provides change in direction and adapts sizes or components
  • Supplied with Victaulic® OGS grooves
  • Exclusively for use with Victaulic® couplings, valves, accessories and pipe which feature ends formed with the Victaulic® OGS groove profile
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_FC37052P00_Specification_Sheet.pdf
