Victaulic® F012010G00 F012010G00_
  1. pin-int

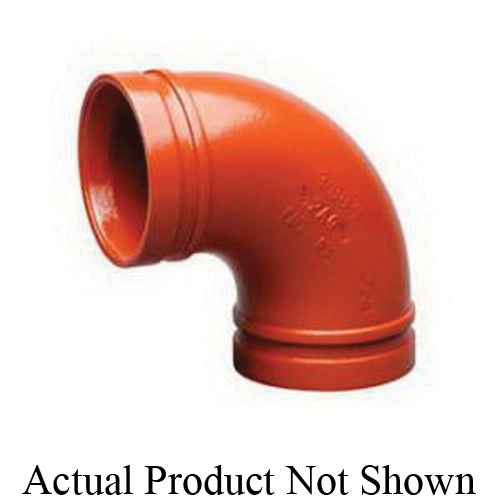

Victaulic® F012010G00 Long Radius Pipe 90 deg Elbow, 1-1/4 in, Grooved, Ductile Iron

Victaulic® F012010G00 Long Radius Pipe 90 deg Elbow, 1-1/4 in, Grooved, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: F012010G00_
  • MPN: F012010G00
  • UPC: 688304048111
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Fittings are supplied with grooved or shouldered ends to permit fast installation without field preparation. Fittings conform to the pressure ratings of Style 77 flexible couplings. Not intended for use with Victaulic couplings for plain end pipe.

Victaulic® Pipe Elbow, Long Radius, Series: 10 Series, Fitting/Connector Type: 90 deg Elbow, 1-1/4 in Nominal, Grooved, Ductile Iron, Hot Dipped Galvanized, 1.66 in OD

Dimensions      :      1.66 in OD
End Style      :      Grooved
Finish      :      Hot Dipped Galvanized
Fitting/Connector Type      :      90 deg Elbow
Material      :      Ductile Iron
Nominal Size      :      1-1/4 in
Series      :      10 Series
Type      :      Long Radius
  • Connects pipe, provides change in direction and adapts sizes or components
  • Supplied with Victaulic® OGS grooves
  • Exclusively for use with Victaulic® couplings, valves, accessories and pipe which feature ends formed with the Victaulic® OGS groove profile
  • For use with stainless steel and carbon steel pipes
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_NM18000026_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_F034012G00_Specification_Sheet.pdf
