Victaulic® F020190PE0 F020190PE0_
  1. pin-int

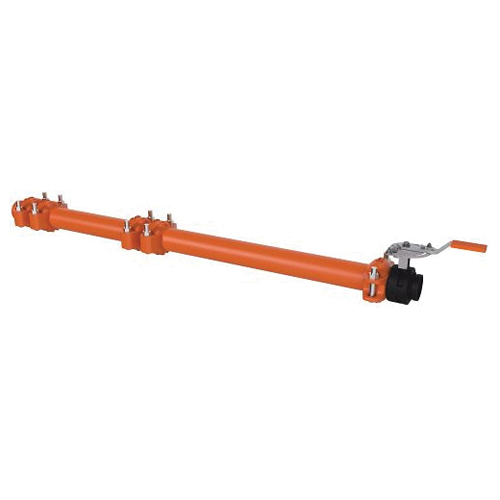

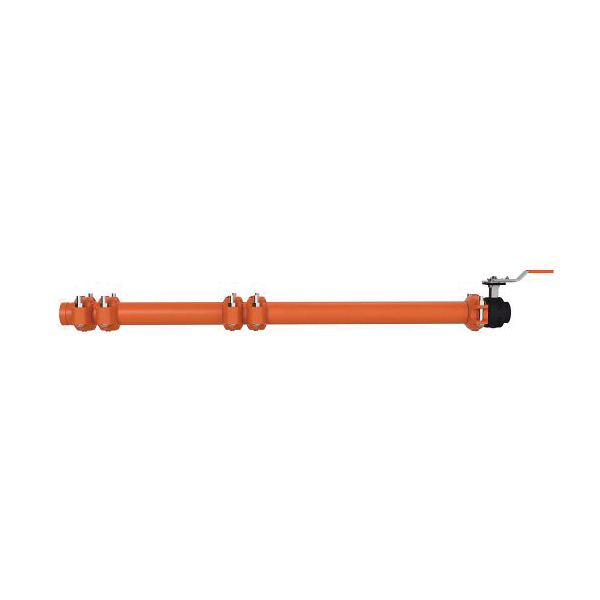

Victaulic® F020190PE0 A190 Riser Movement Fitting, 2 in, Ductile Iron

Victaulic® F020190PE0 A190 Riser Movement Fitting, 2 in, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: F020190PE0_
  • MPN: F020190PE0
  • UPC: 195150069196
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® Riser Movement Fitting, Series: A190, Fitting/Connector Type: Fitting, 2 in Nominal, Up to 300 psi Pressure, Ductile Iron, Orange Painted, -30 to 230 deg F, 2-3/8 in OD, Domestic

Dimensions      :      2-3/8 in OD
Domestic/Import      :      Domestic
Finish      :      Orange Painted
Fitting/Connector Type      :      Fitting
Material      :      Ductile Iron
Nominal Size      :      2 in
Pressure Rating      :      Up to 300 psi
Series      :      A190
Temperature Rating      :      -30 to 230 deg F
  • For use on carbon steel NPS riser piping branch lines to accommodate movement of the riser
  • Provides 3/4 in deflection (up and down) within a 24 in shaft space
  • Provides a shut-off valve on every floor
  • Provides noise and vibration isolation
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_F020190PE0_Specification_Sheet.pdf
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_A010AQBNAP_Warranty.pdf
