Victaulic® FC43050G00 FC43050G00_
  1. pin-int

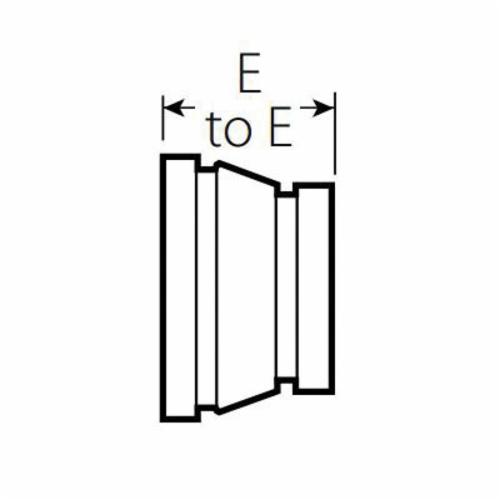

Victaulic® FC43050G00 50 Series Concentric Reducer, 3 x 2 in, Grooved, Ductile Iron

Victaulic® FC43050G00 50 Series Concentric Reducer, 3 x 2 in, Grooved, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: FC43050G00_
  • MPN: FC43050G00
  • UPC: 688304036026
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Fittings are supplied with grooved or shouldered ends to permit fast installation without field preparation. Fittings conform to the pressure ratings of Style 77 couplings. Not intended for use with Victaulic couplings for plain end pipe.

Victaulic® Concentric Reducer, Series: 50 Series, Fitting/Connector Type: Reducer, 3 x 2 in Nominal, Grooved, 2-1/2 in Length, 1000 psi, Ductile Iron, Hot Dipped Galvanized, Import

Domestic/Import      :      Import
End Style      :      Grooved
Finish      :      Hot Dipped Galvanized
Fitting/Connector Type      :      Reducer
Length      :      2-1/2 in
Material      :      Ductile Iron
Nominal Size      :      3 x 2 in
Pressure Rating      :      1000 psi
Series      :      50 Series
  • Connects pipe, provides change in direction and adapts sizes or components
  • Supplied with Victaulic OGS grooves
  • Exclusively for use with Victaulic couplings, valves, accessories and pipe which feature ends formed with the Victaulic OGS groove profile
  • For use with carbon steel or stainless steel
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_NM18000026_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_F034012G00_Specification_Sheet.pdf
